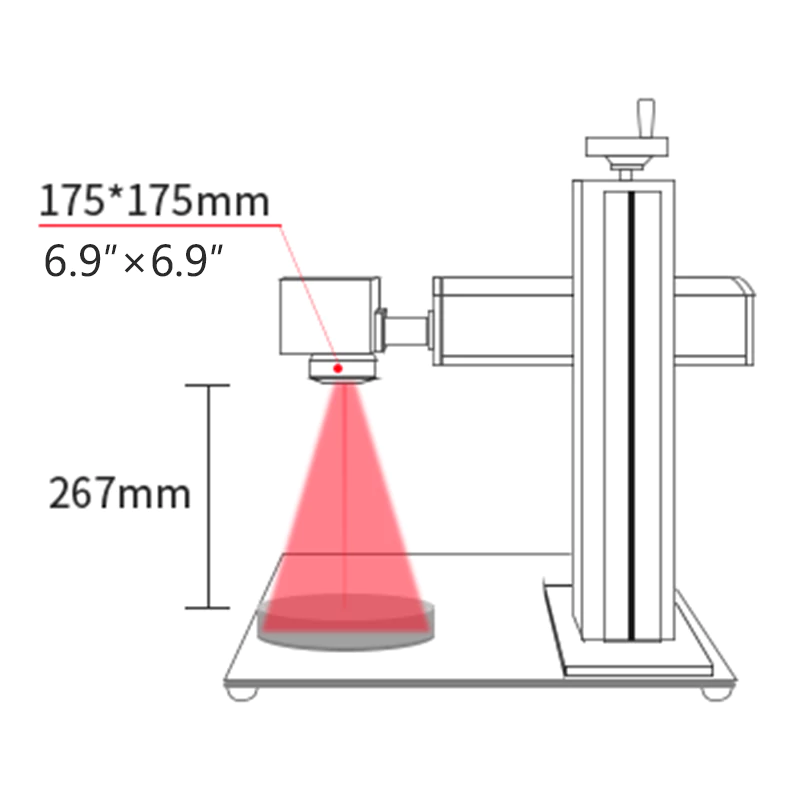

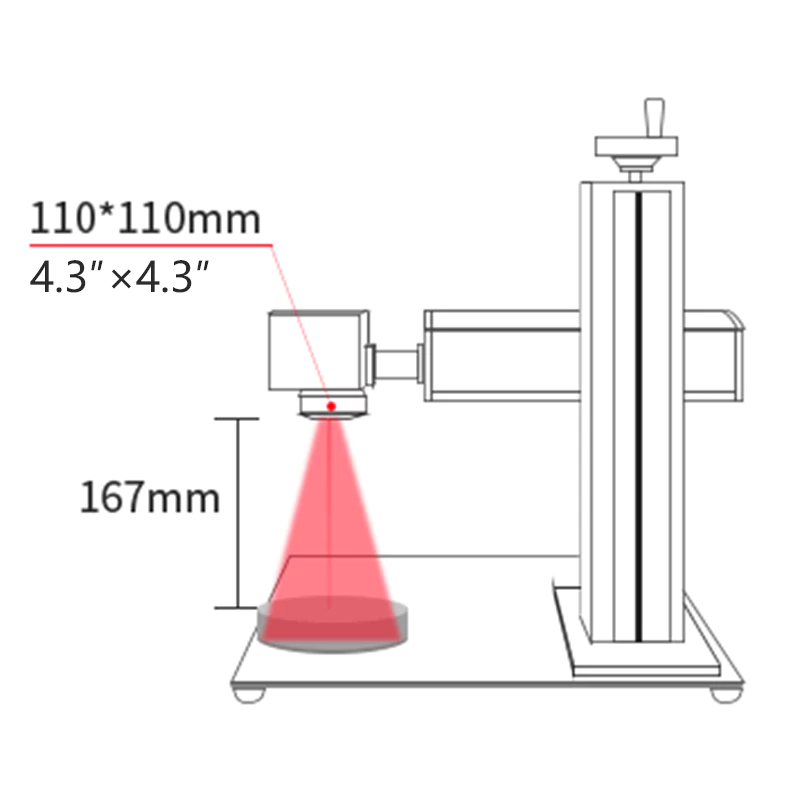

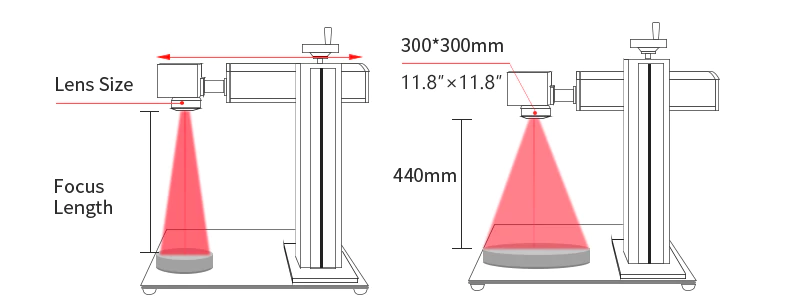

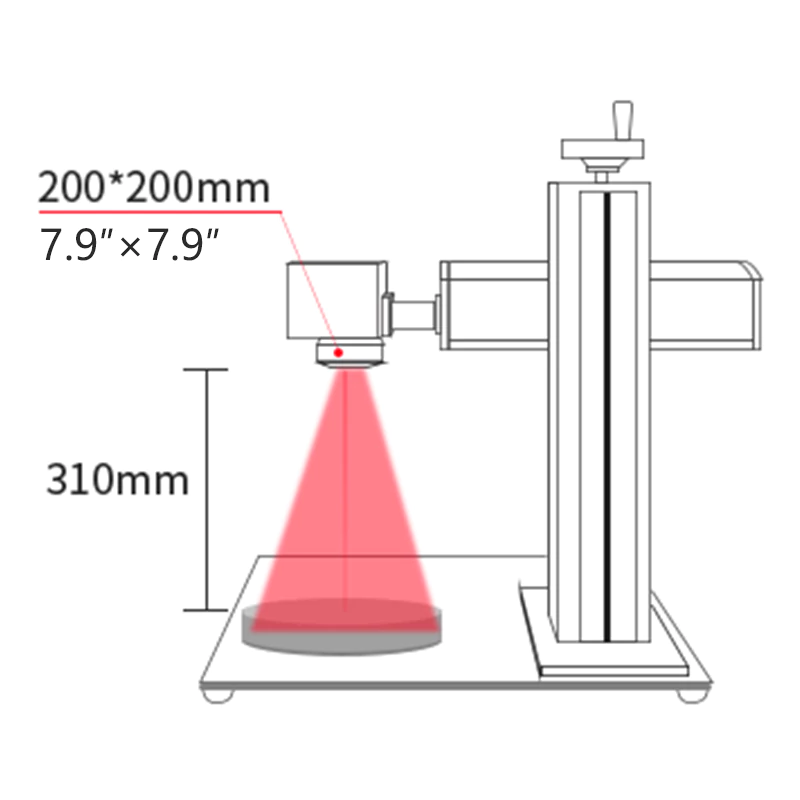

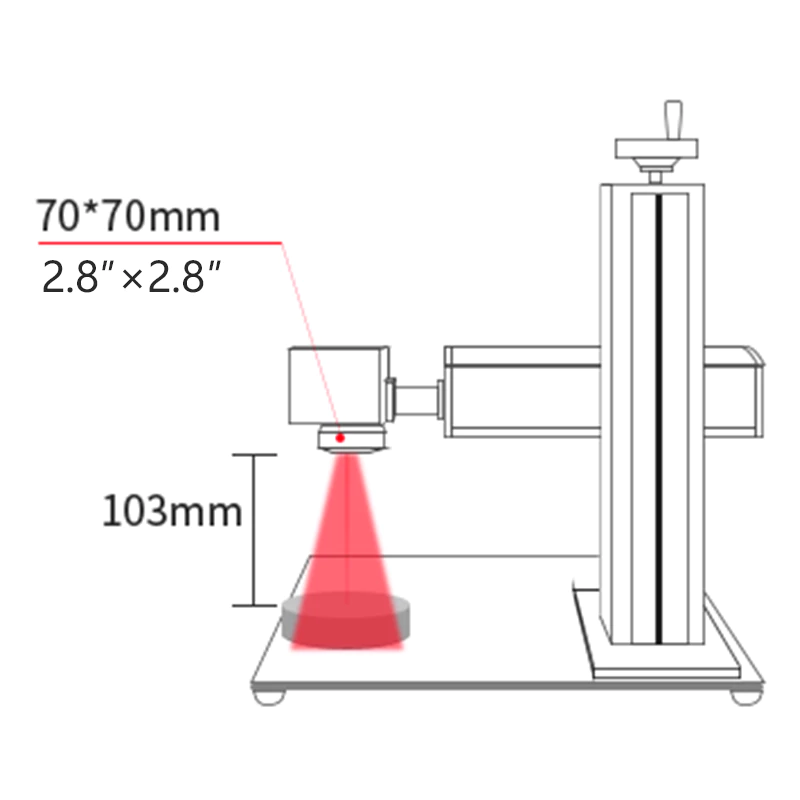

How To Choose Lens
- With same lens, the higher power, the deeper engraving.
- With same power, the smaller lens, the deeper engraving.
- The bigger lens, the bigger engraving area.
- The smaller lens, the deeper engraving depth.
If 20w laser chooses 300mm*300mm lens, it means that the focal length is very high and the power of marking the object is very weak. So not biggest lens area is best, but choose suitable lens.
Sample Display

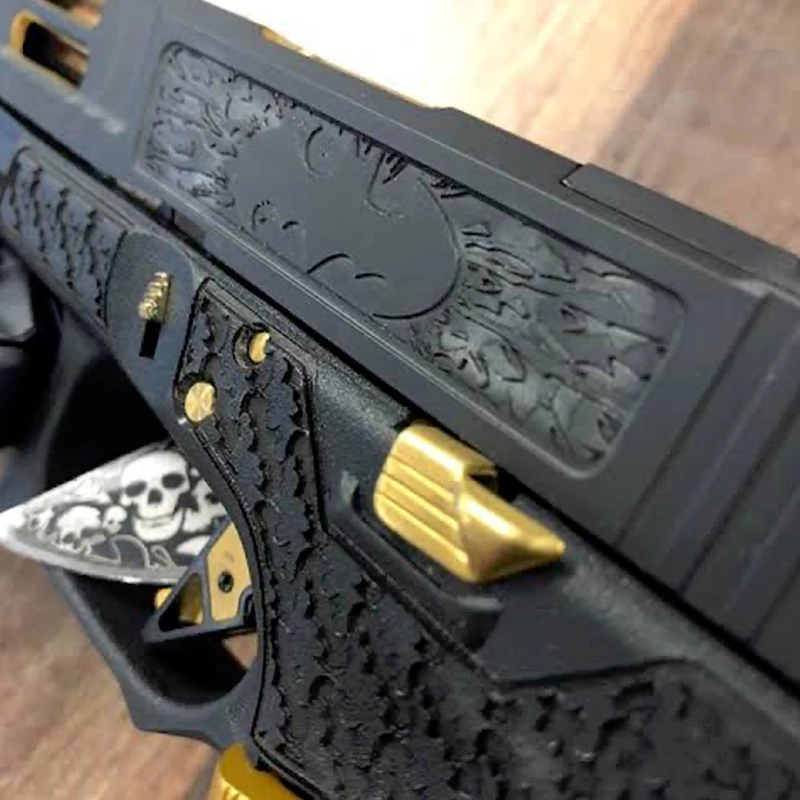

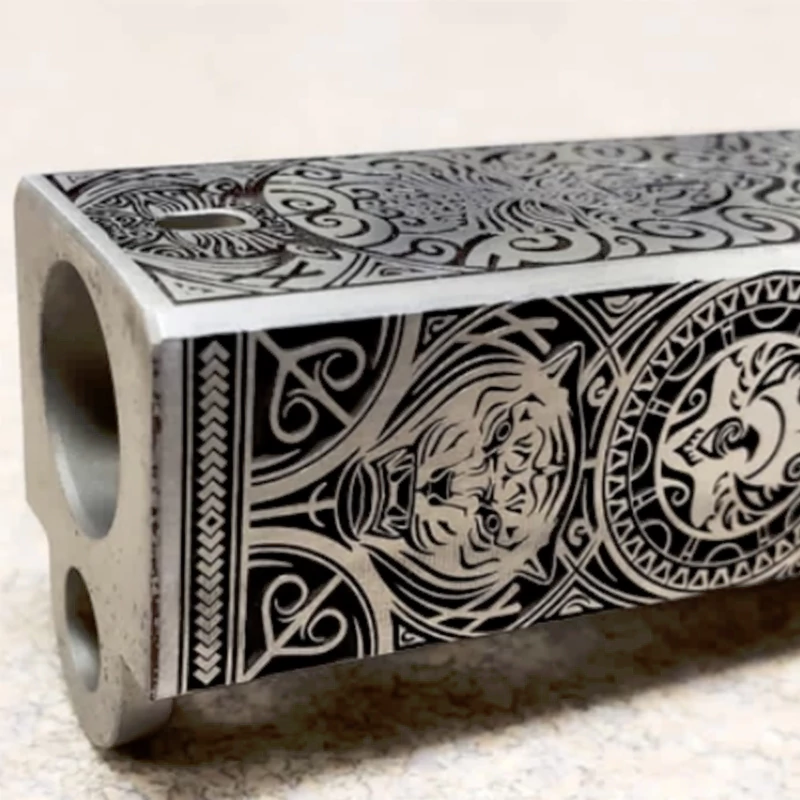

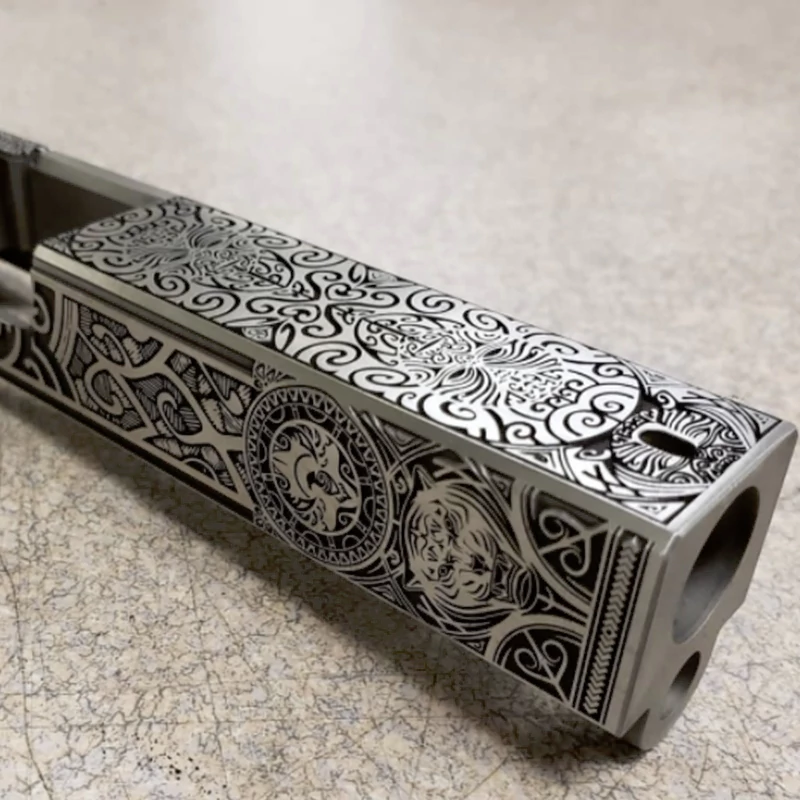

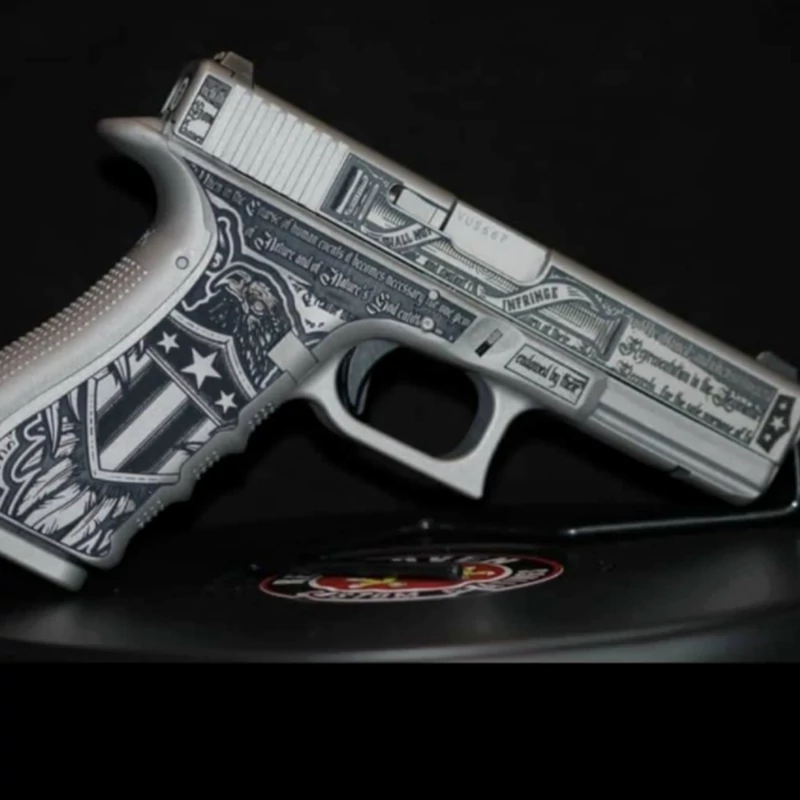

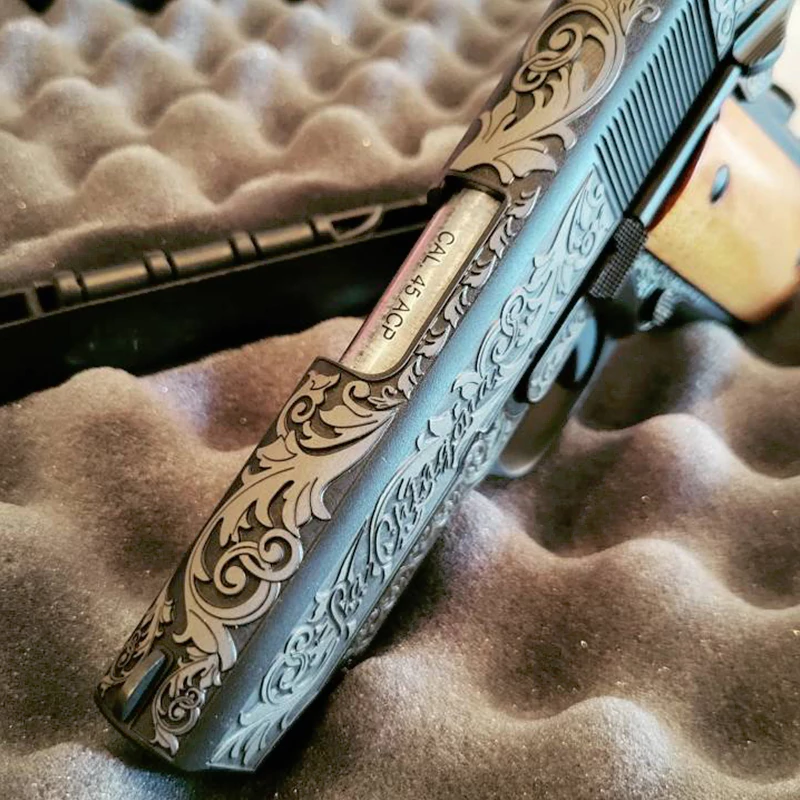

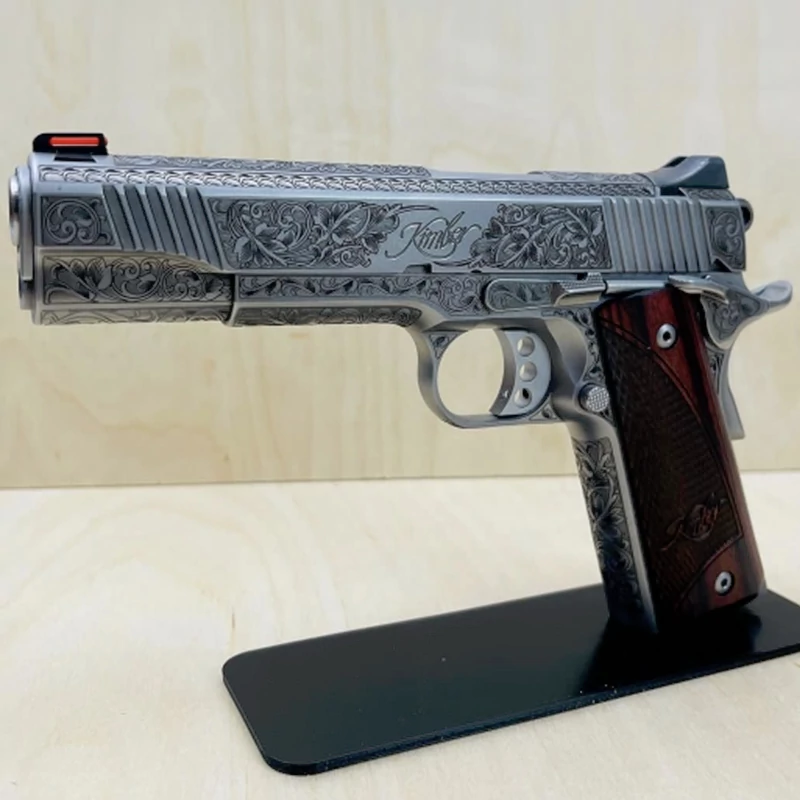

Gun Firearm Engraving

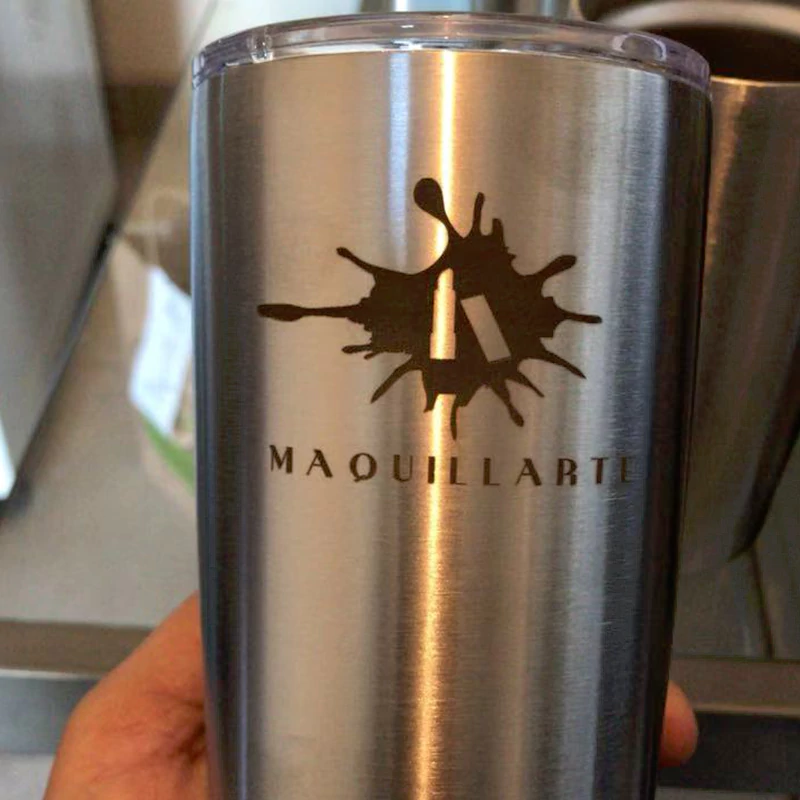

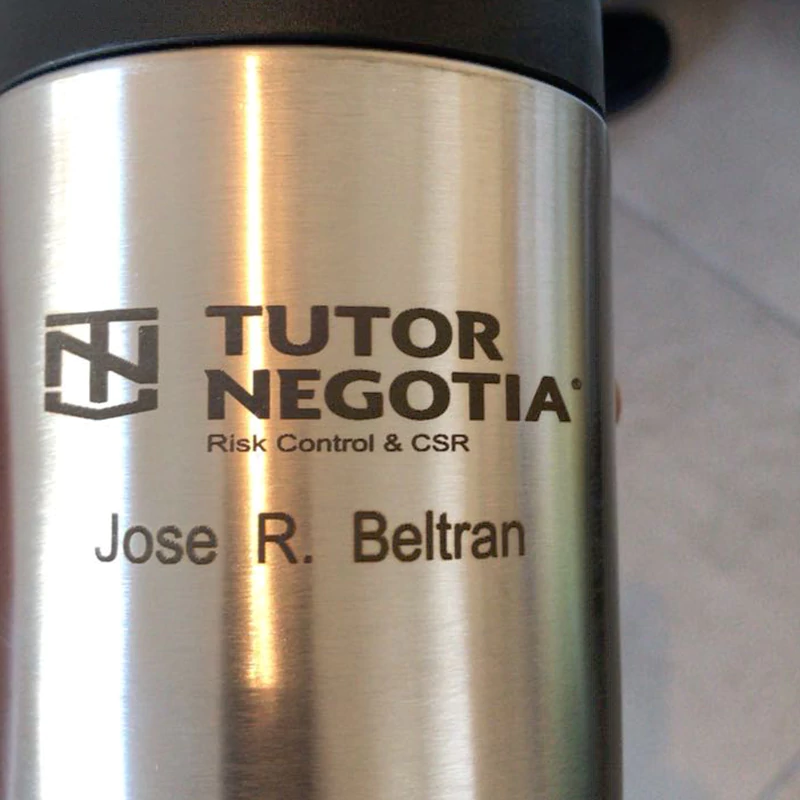

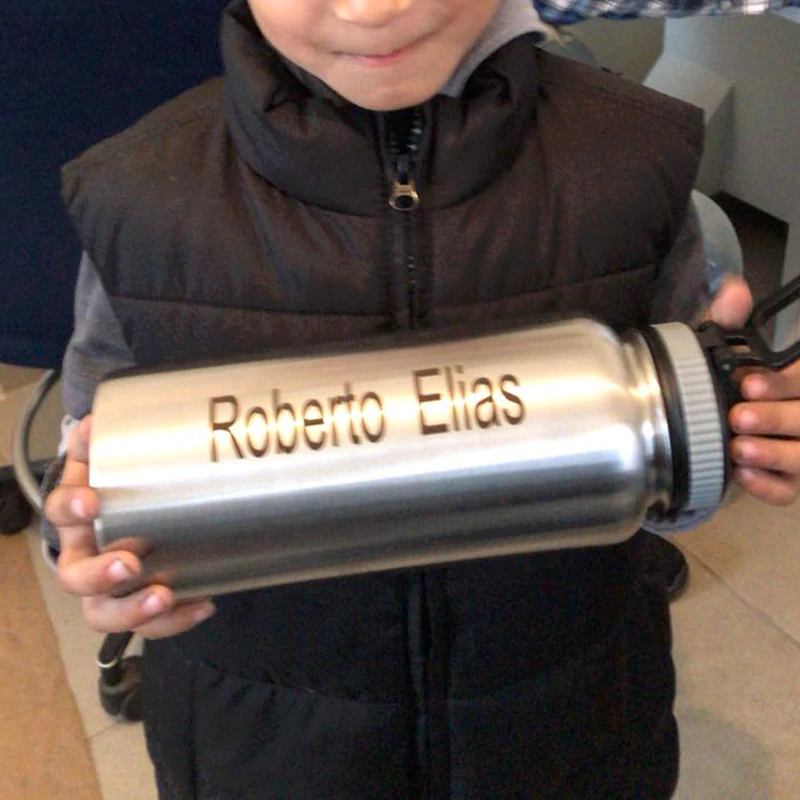

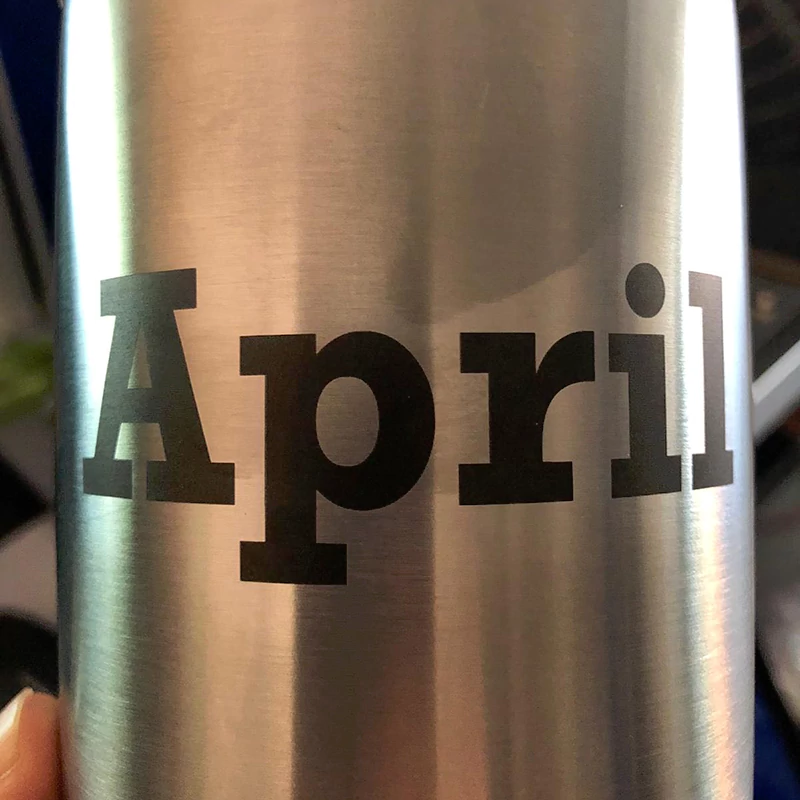

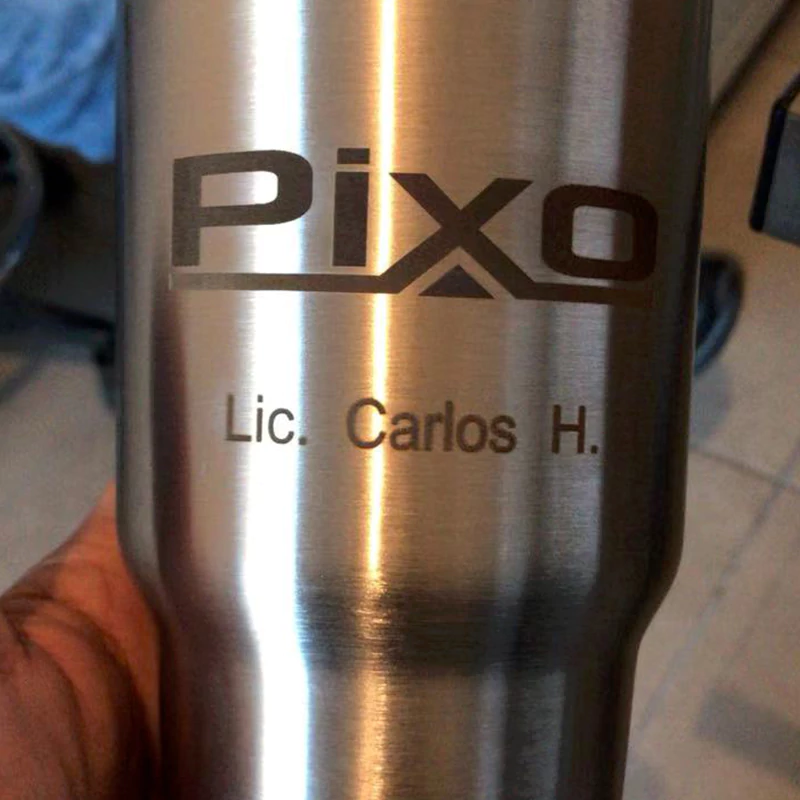

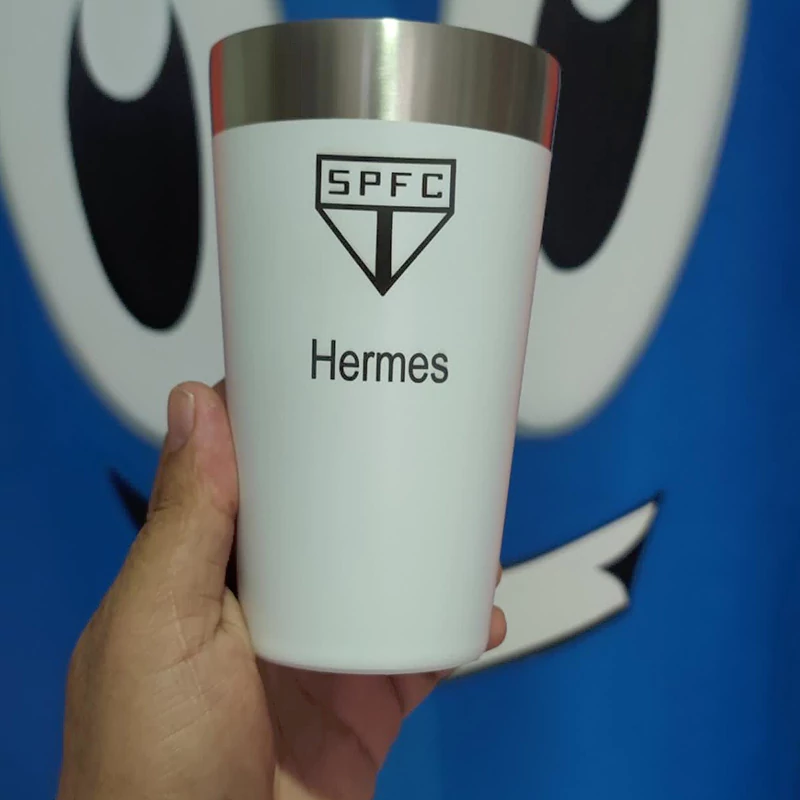

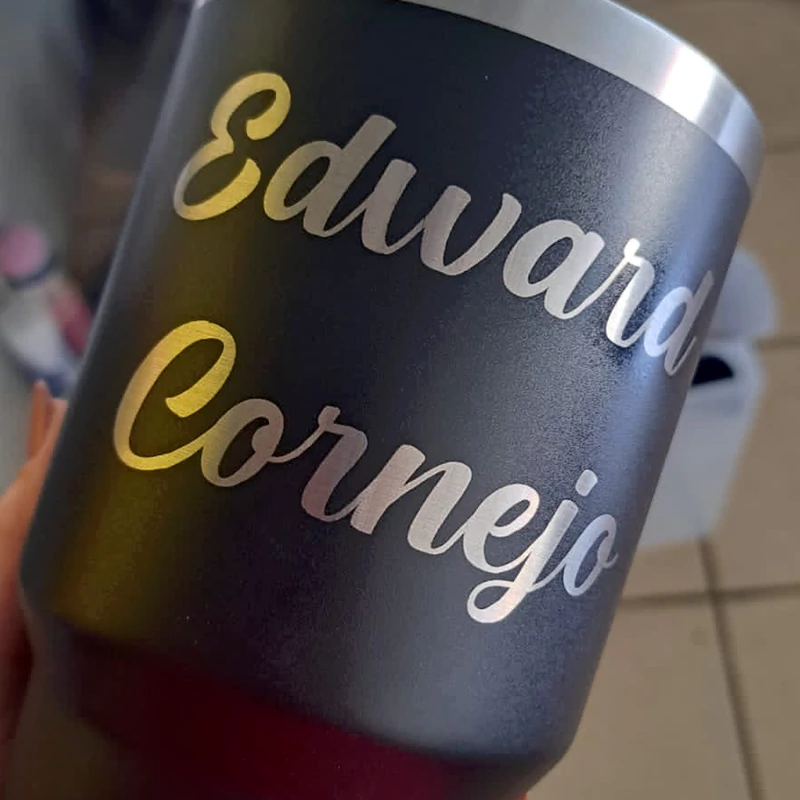

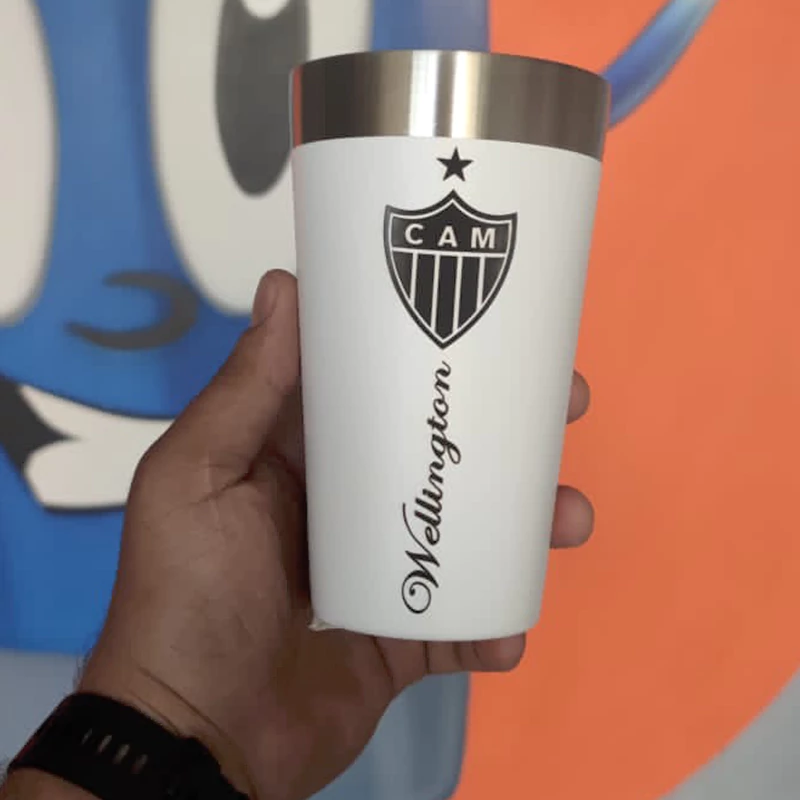

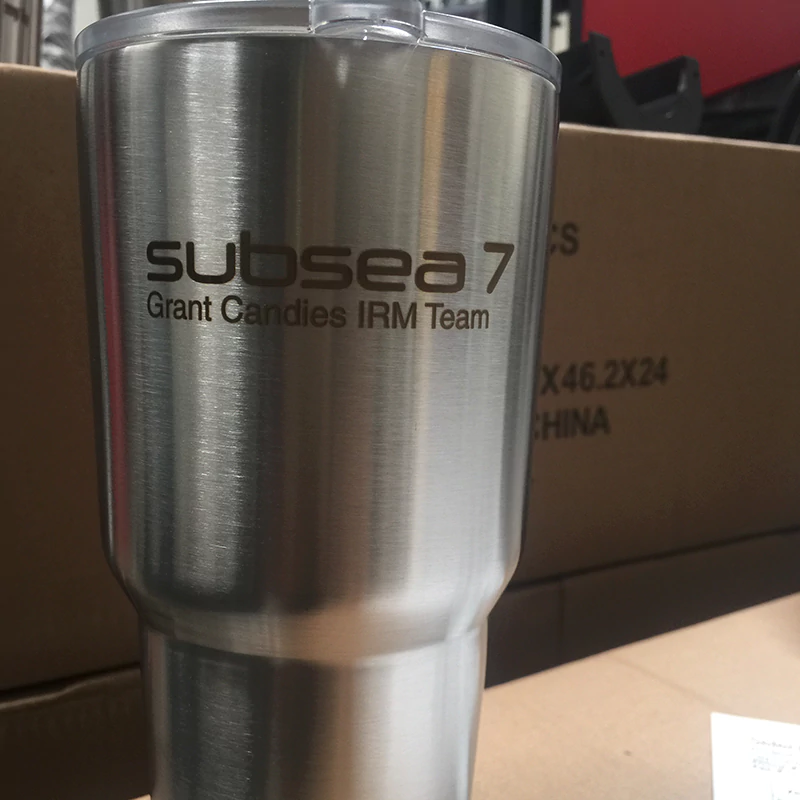

Cup Marking

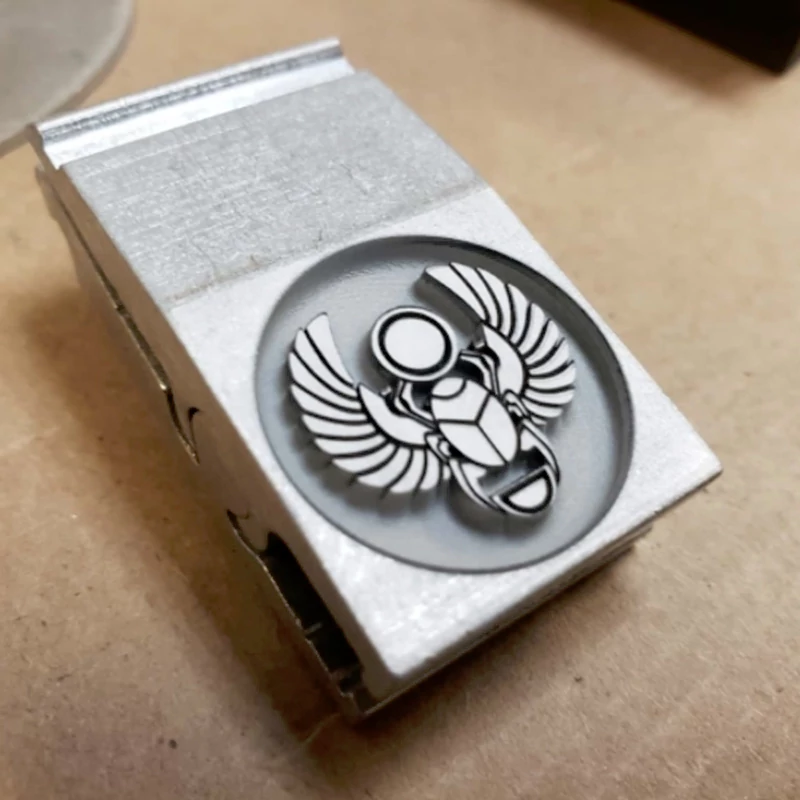

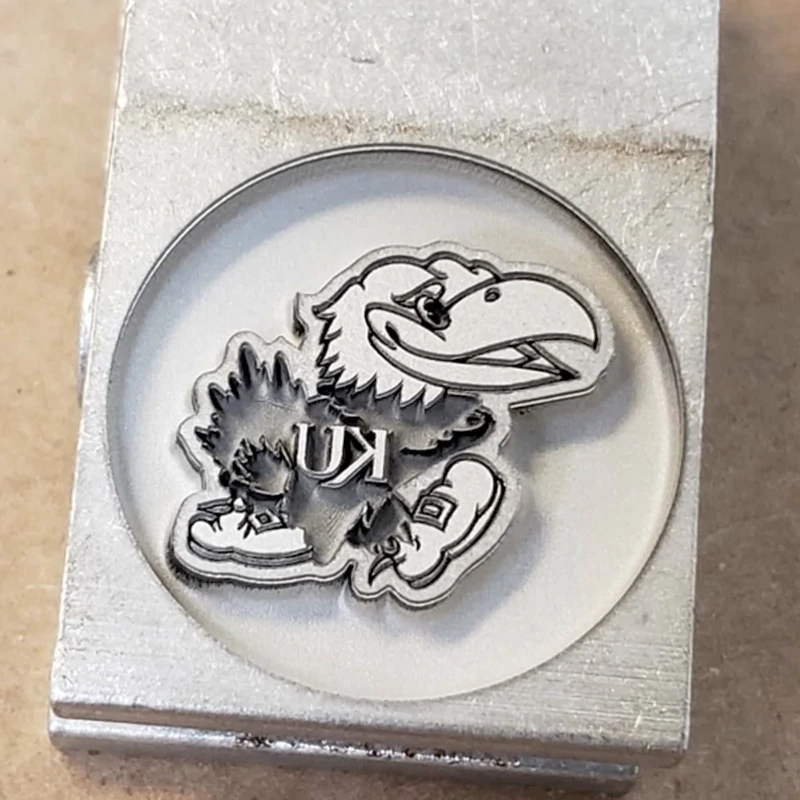

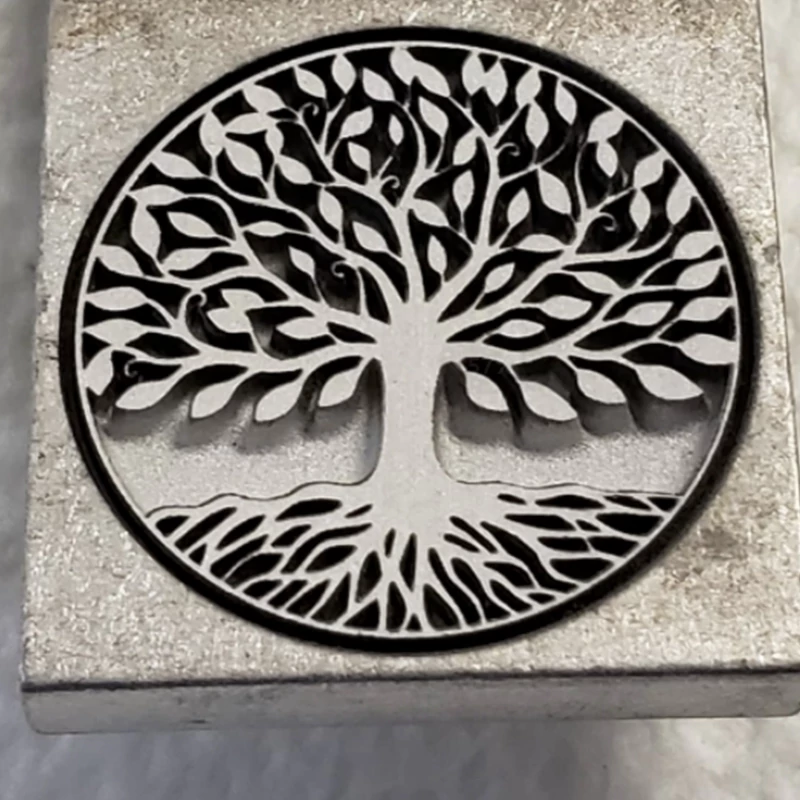

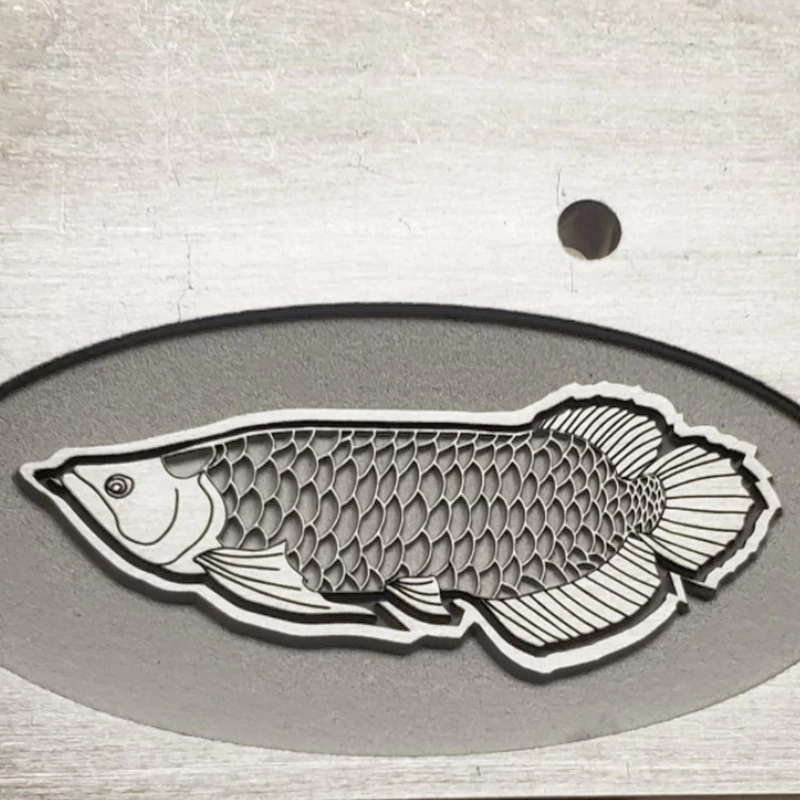

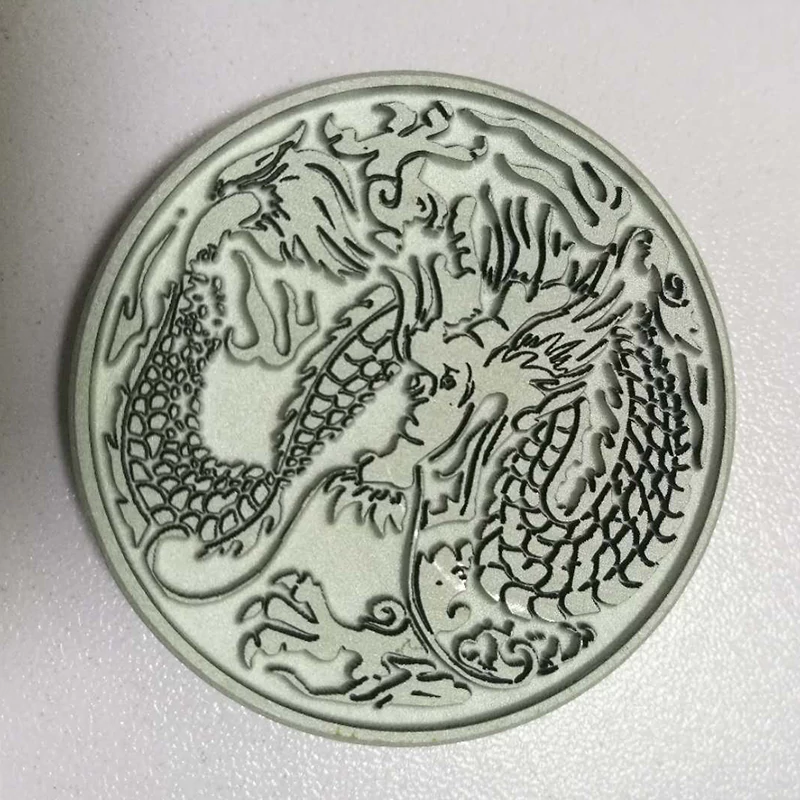

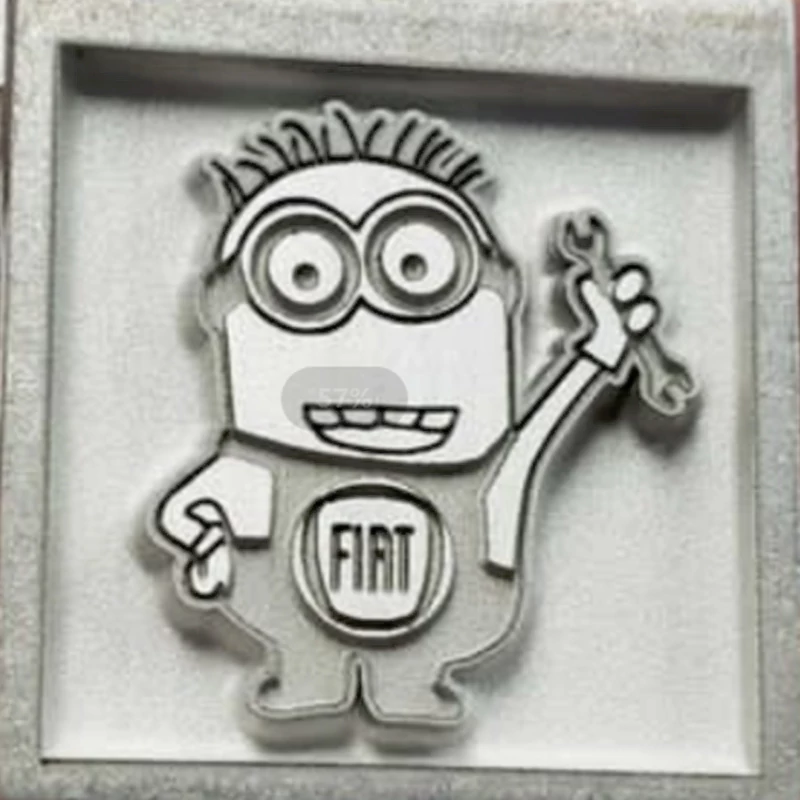

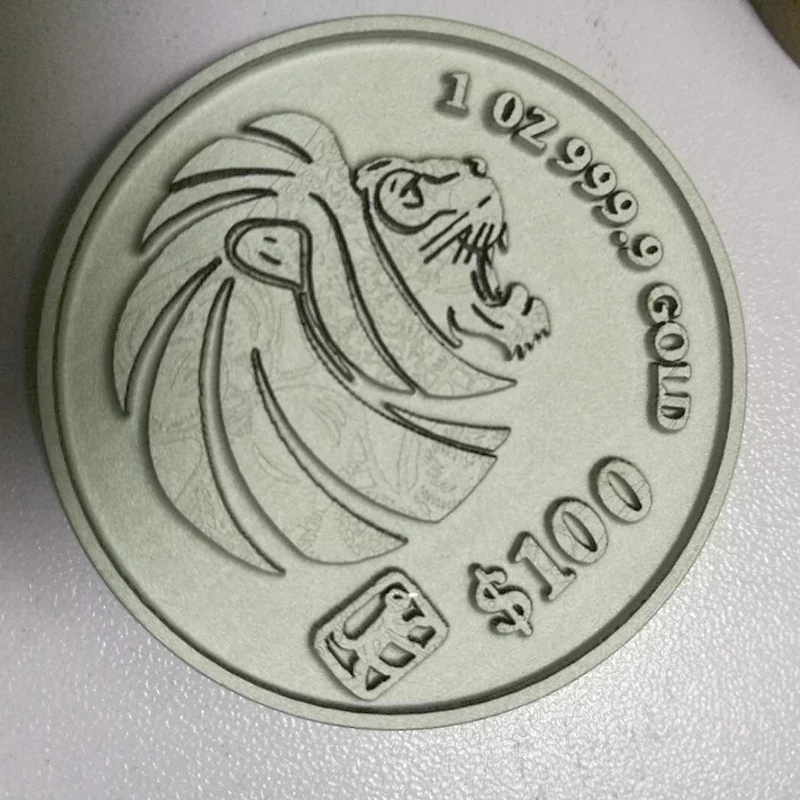

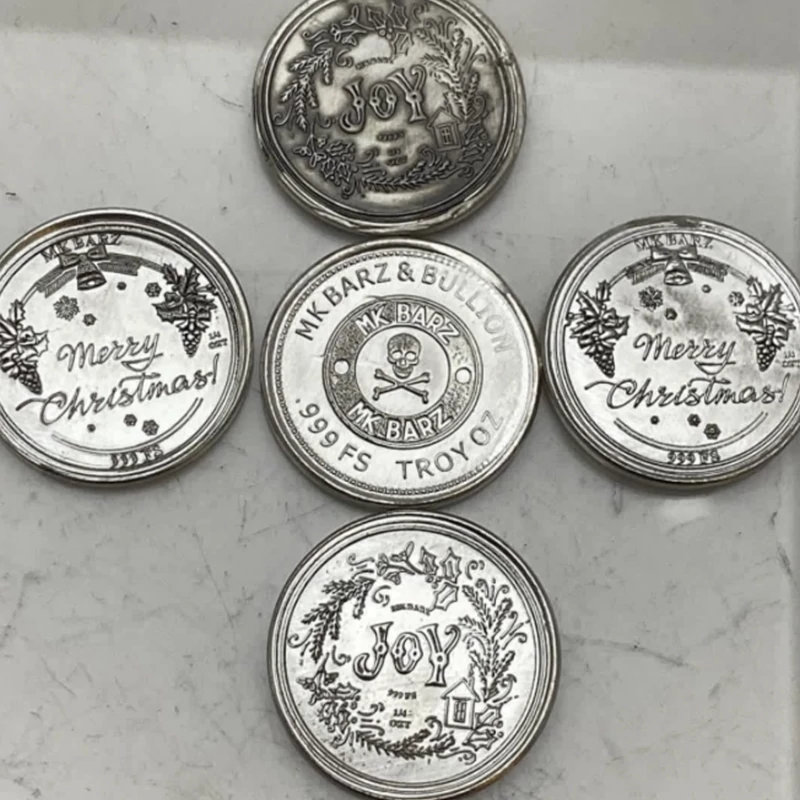

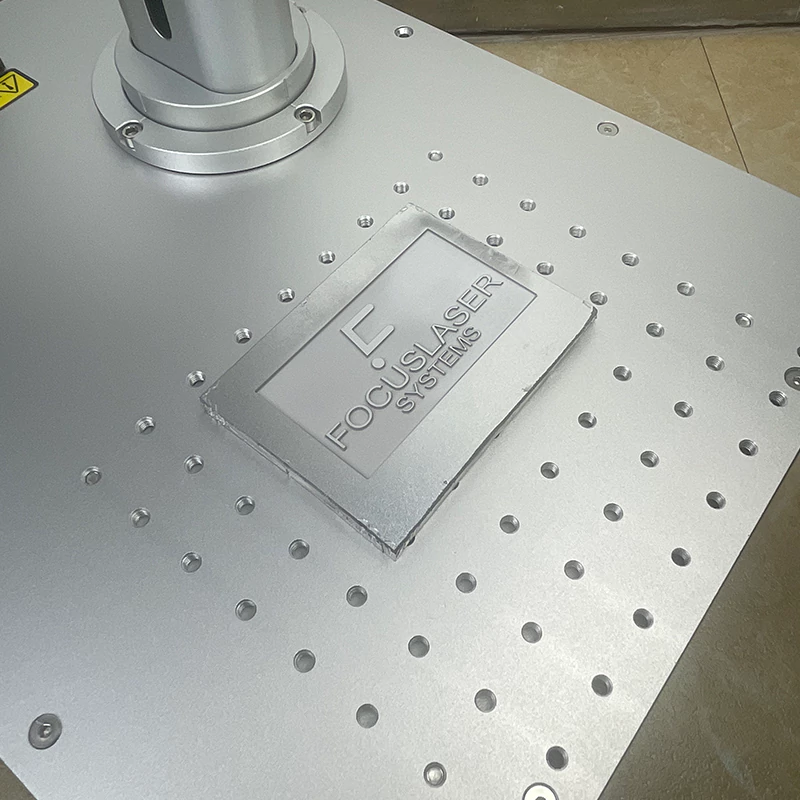

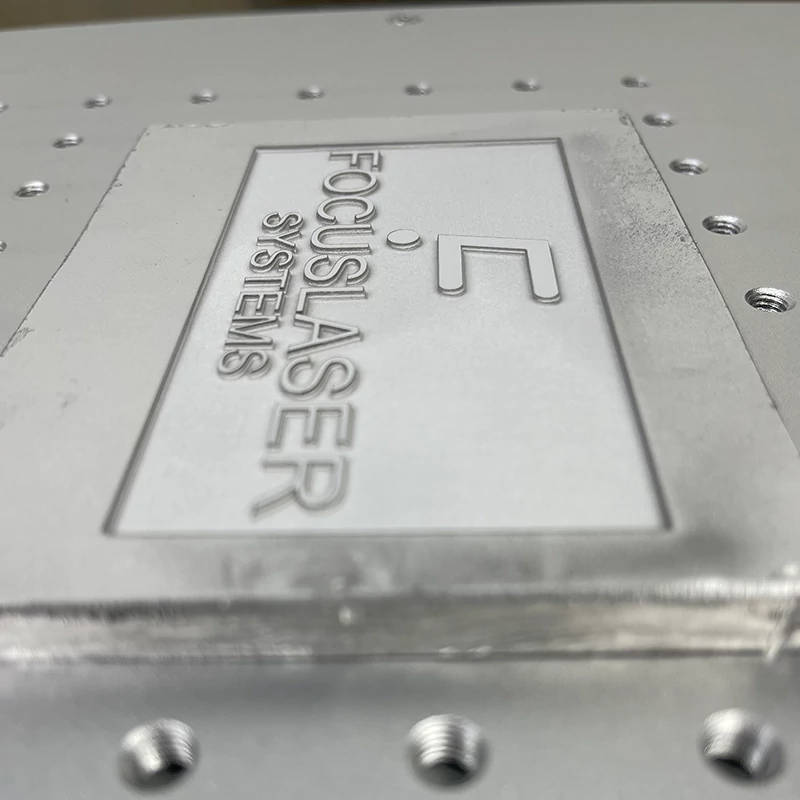

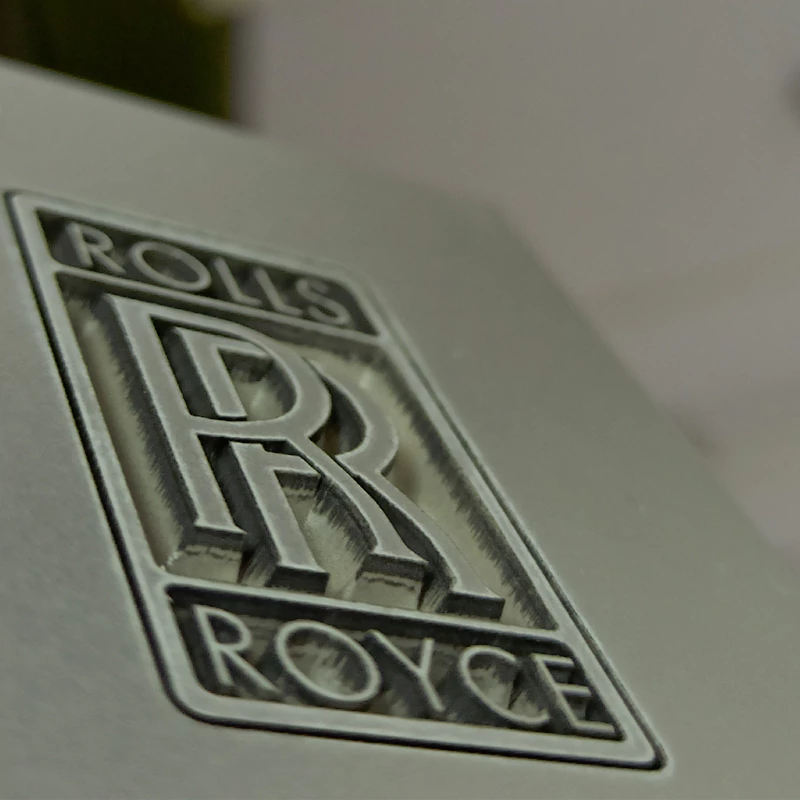

Deep Engraving

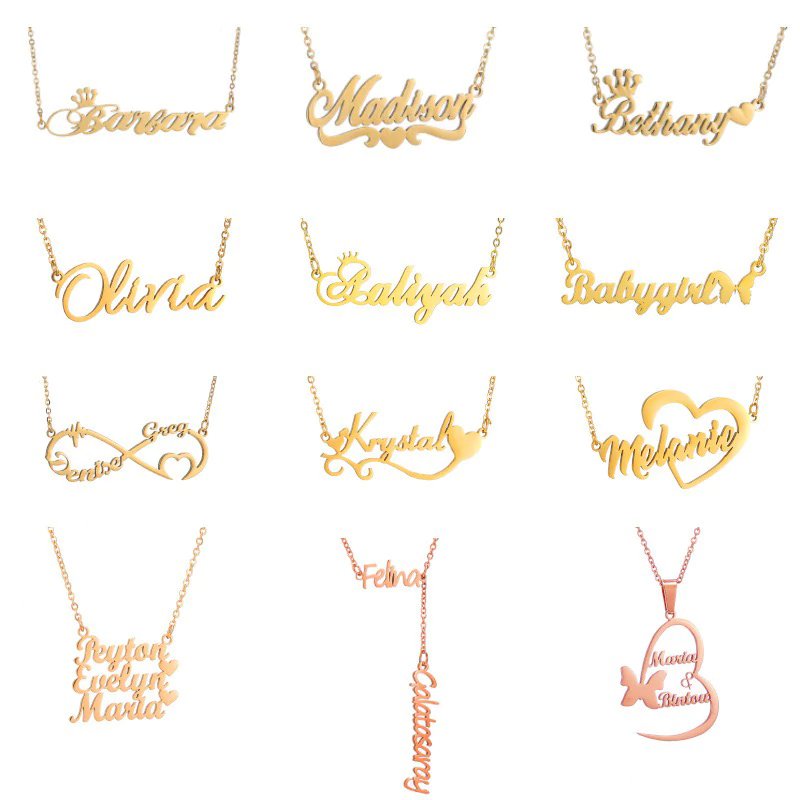

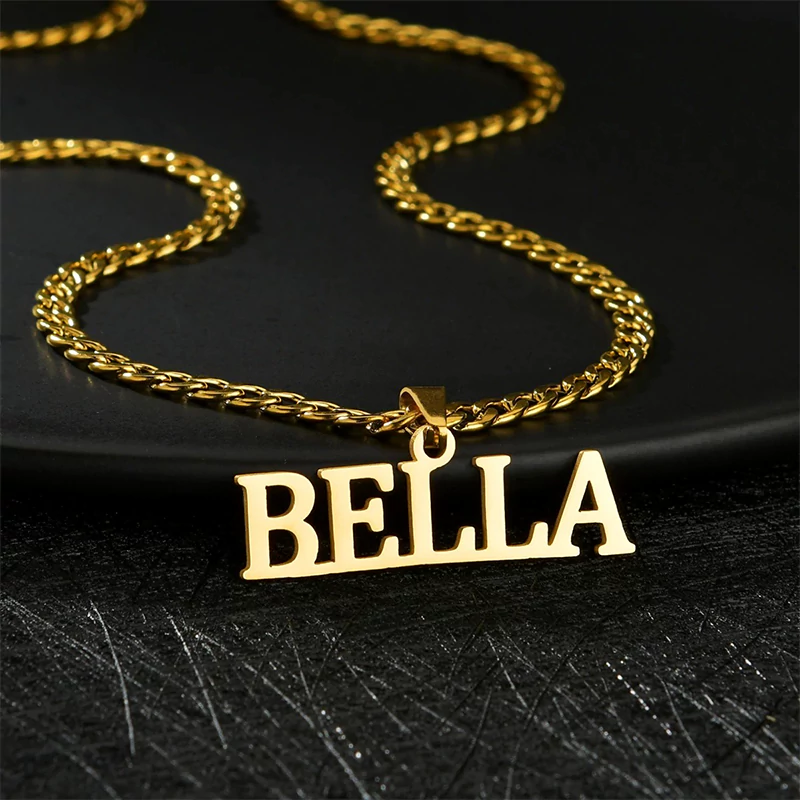

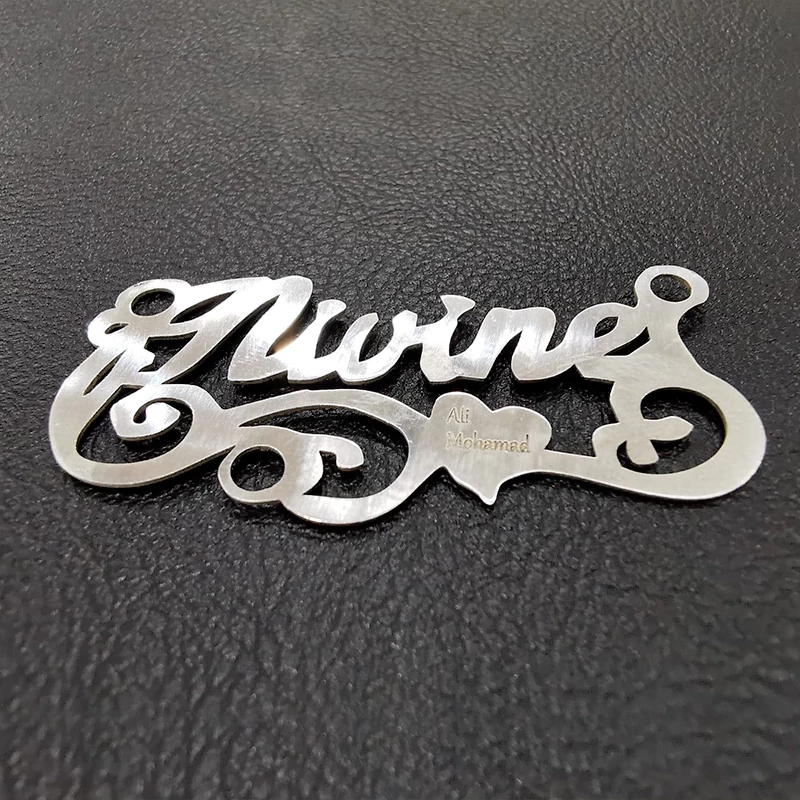

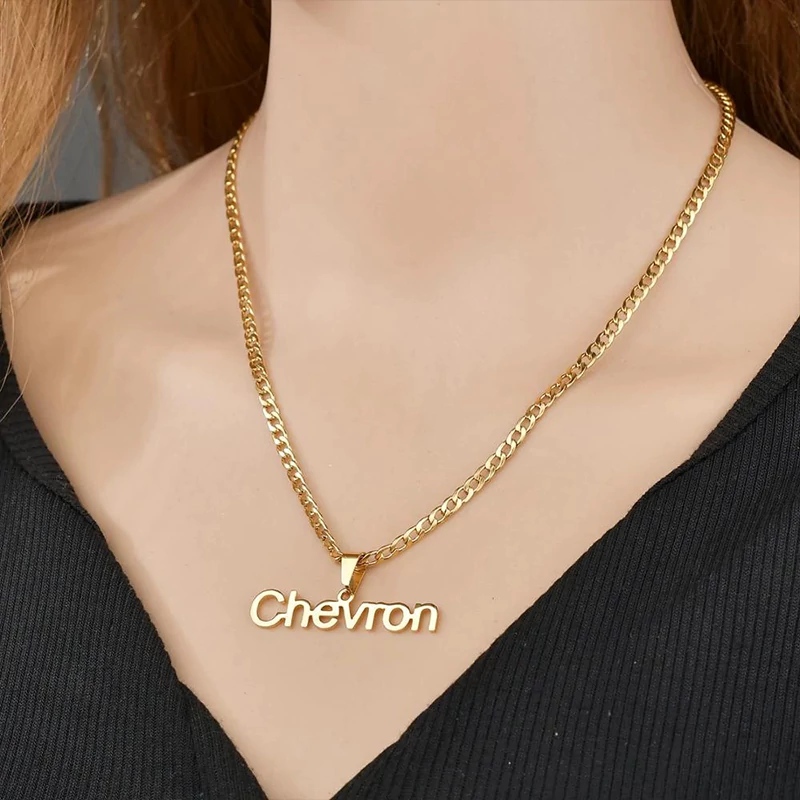

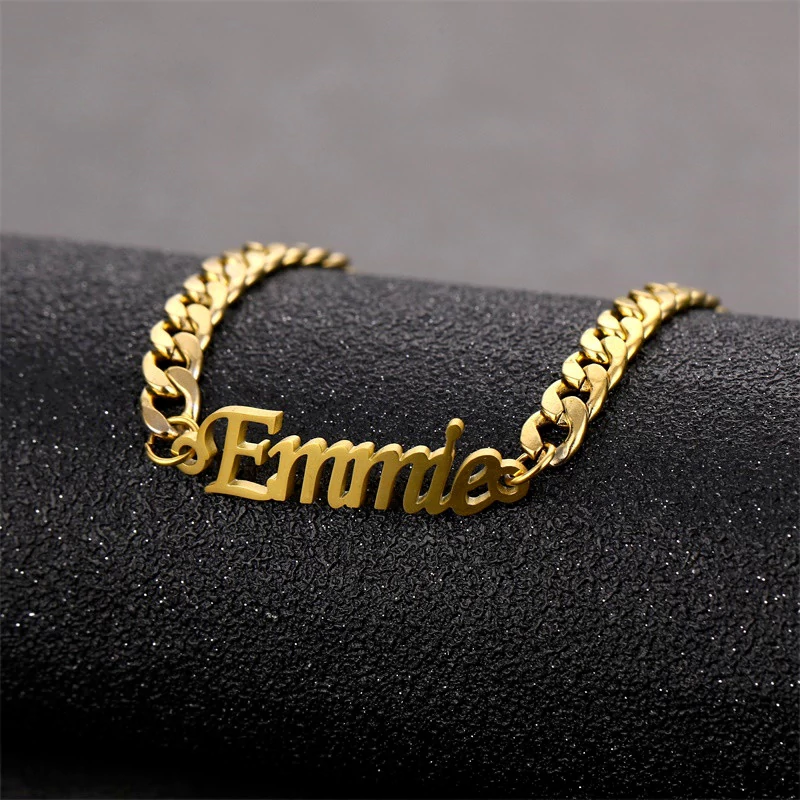

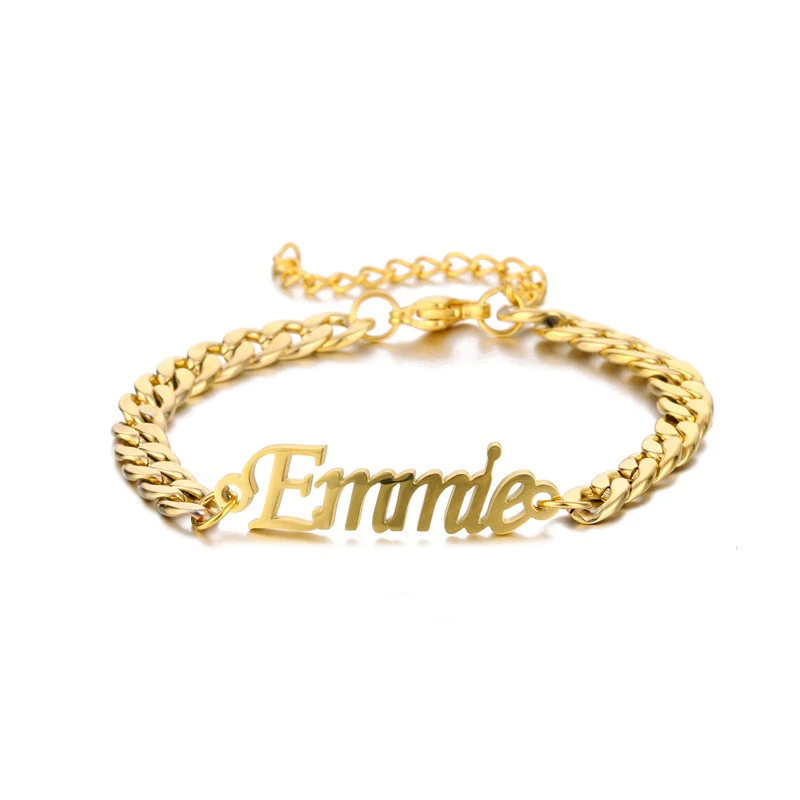

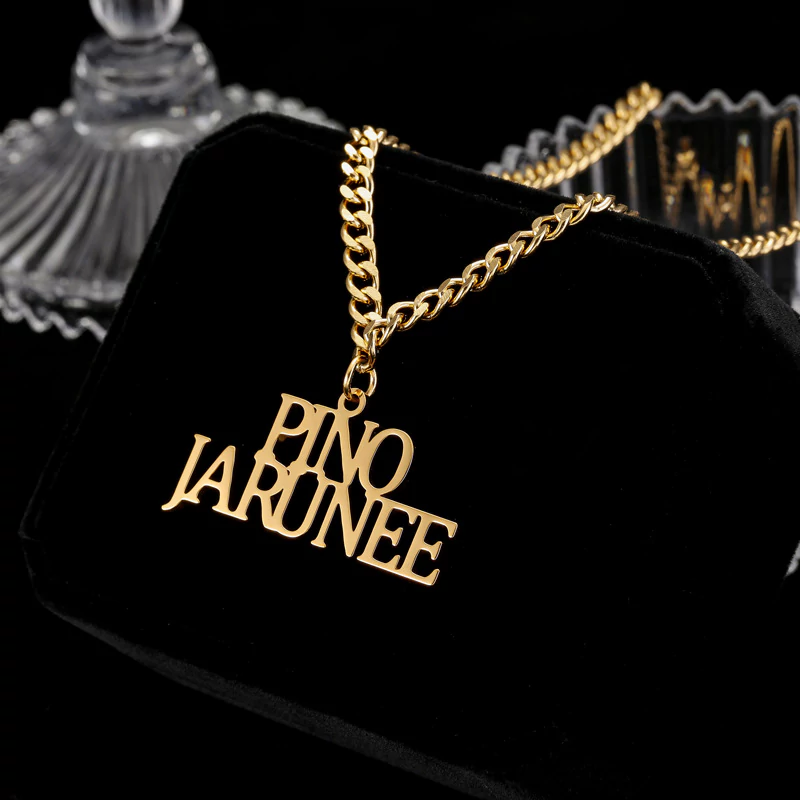

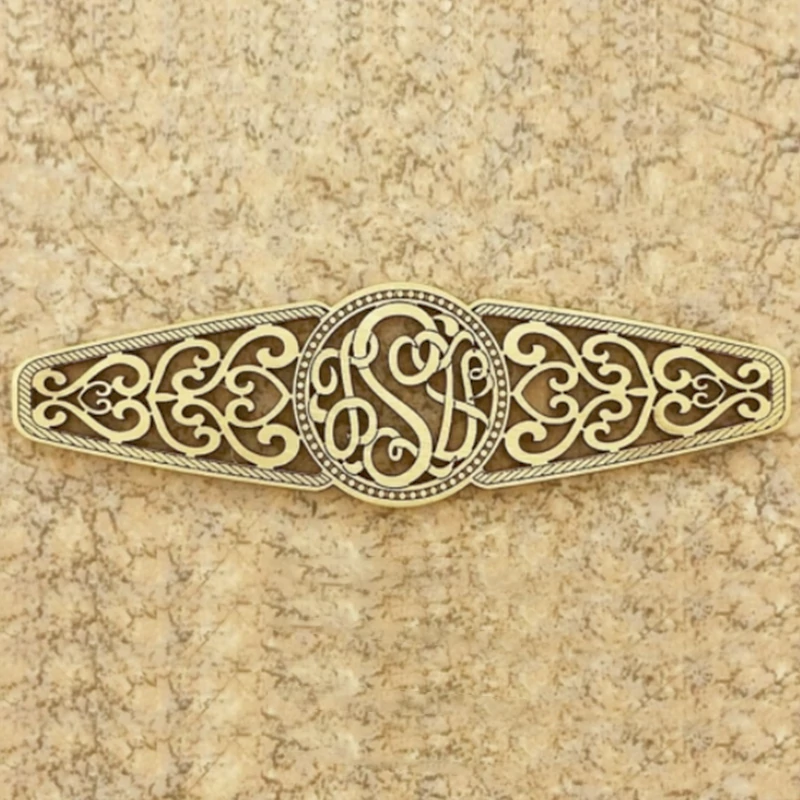

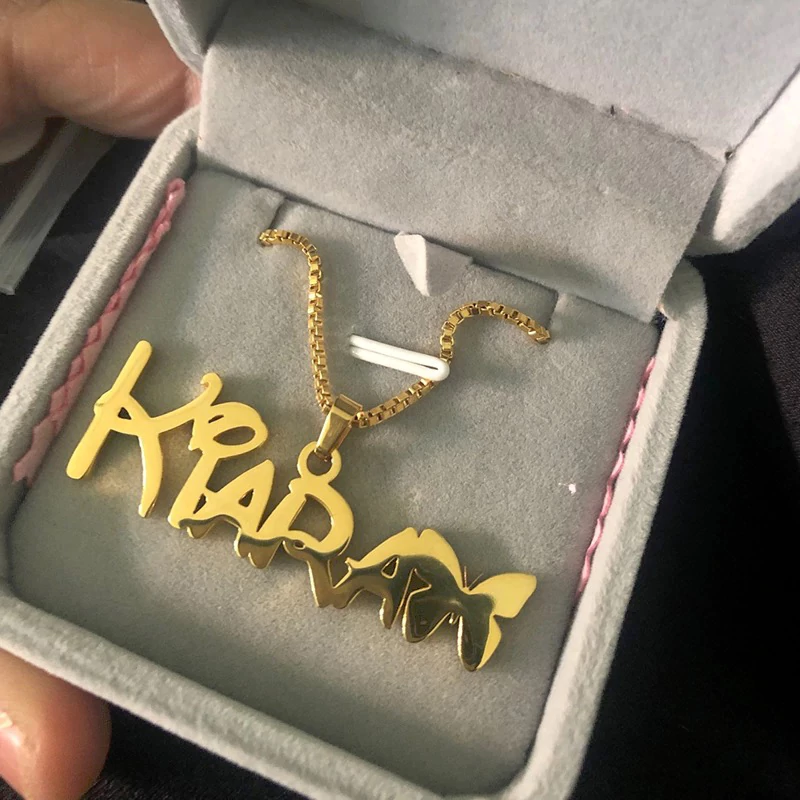

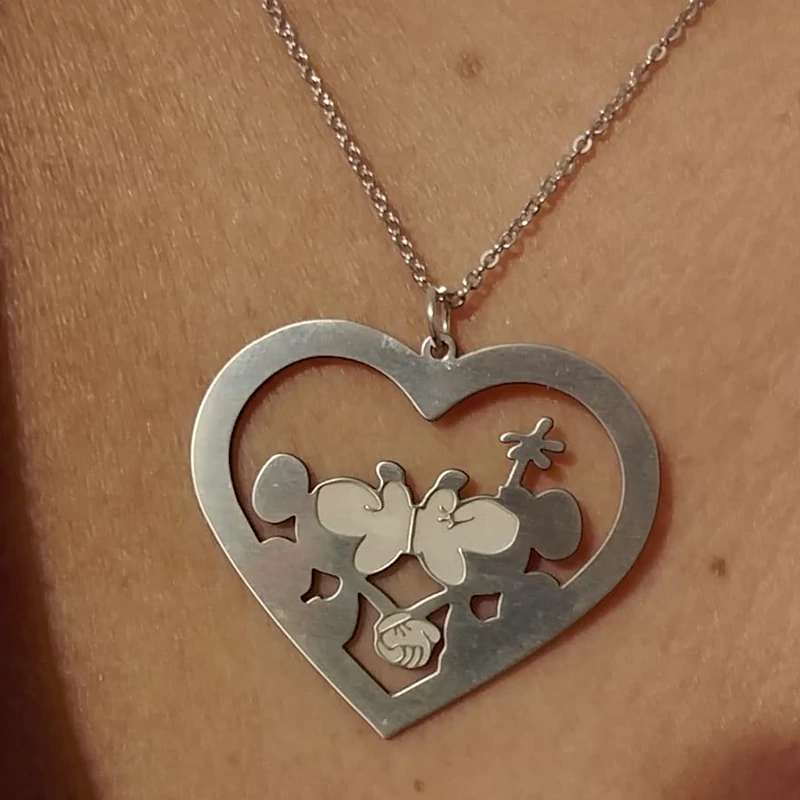

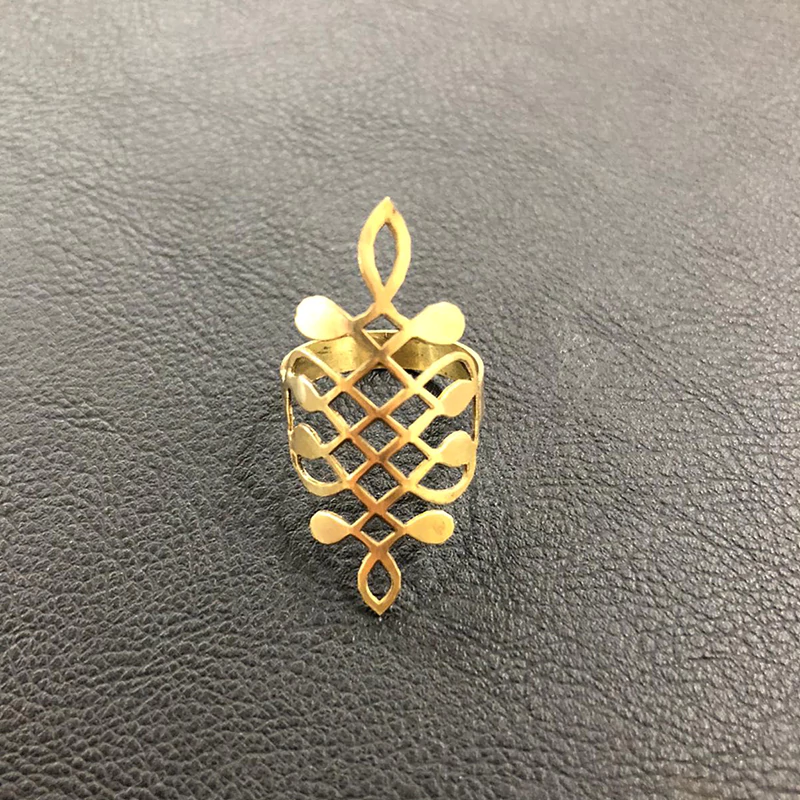

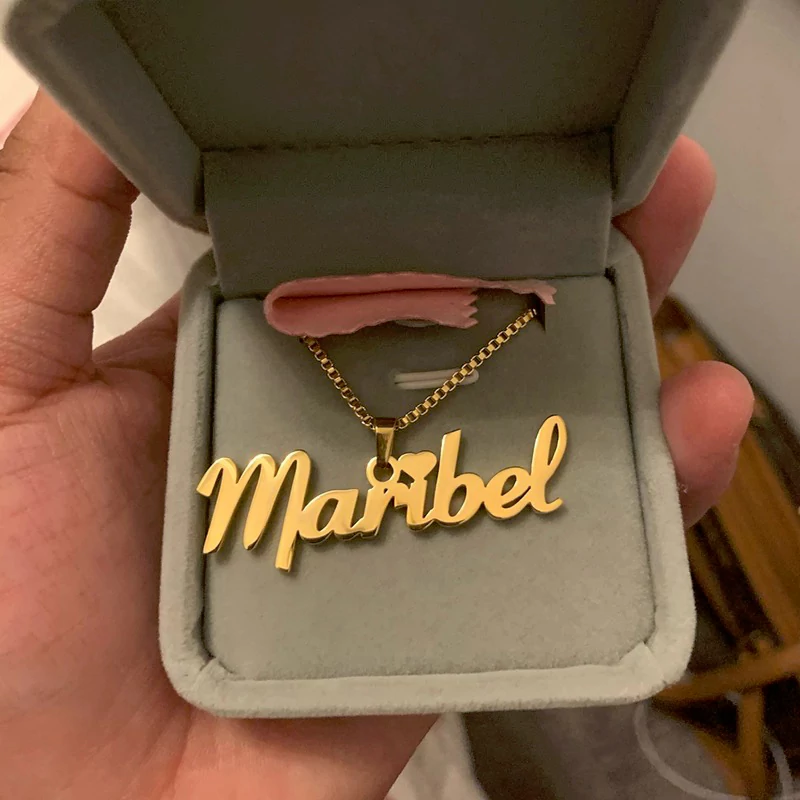

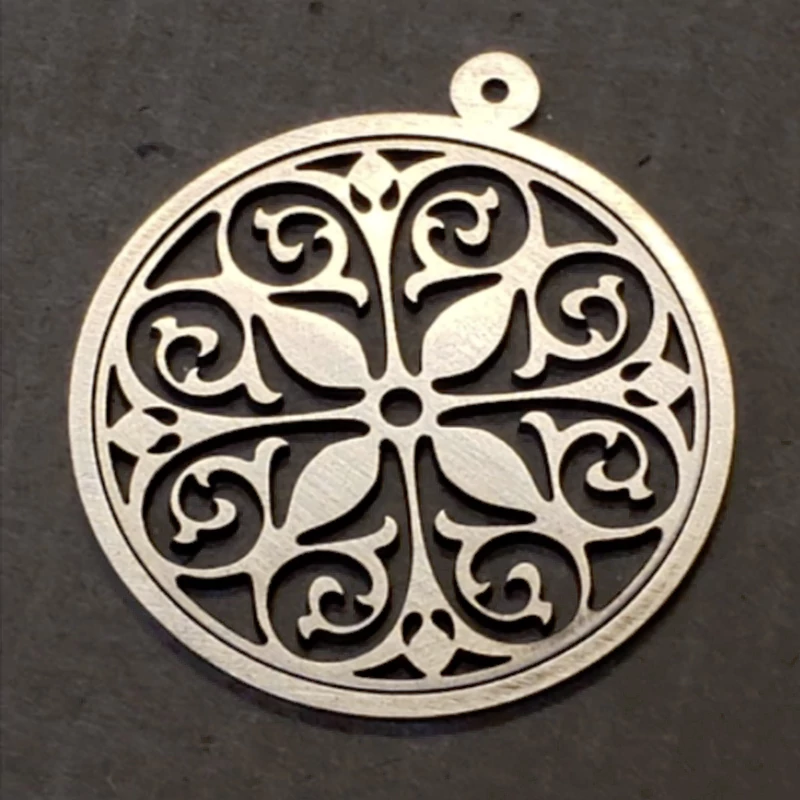

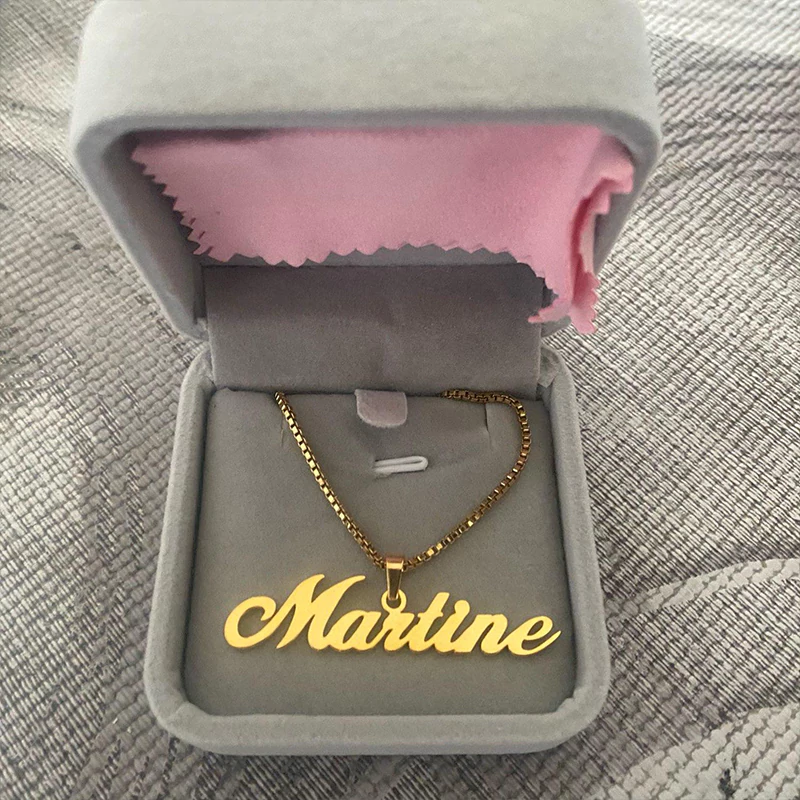

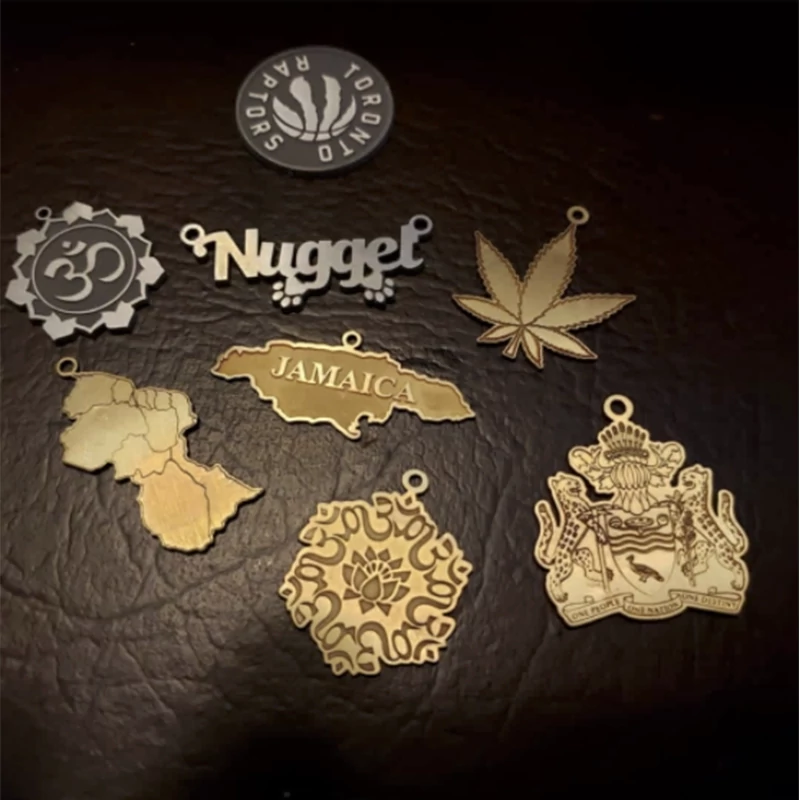

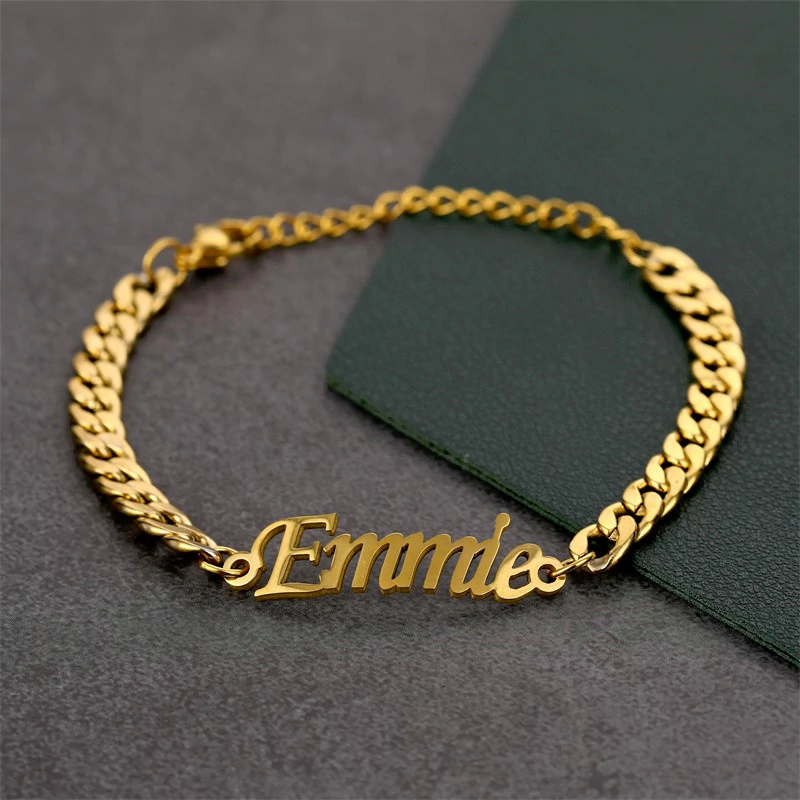

Jewelry Cutting

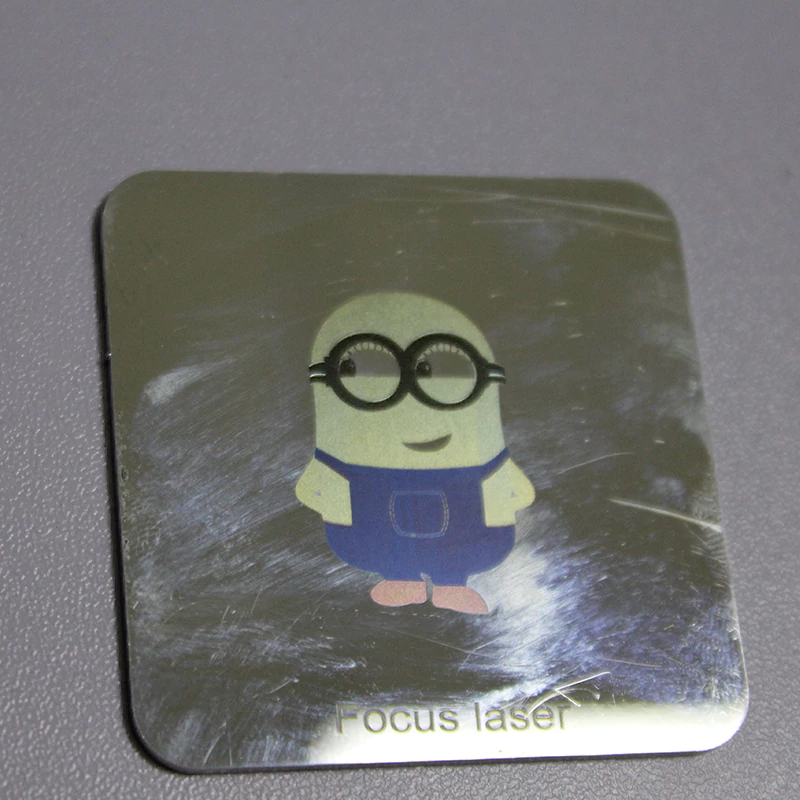

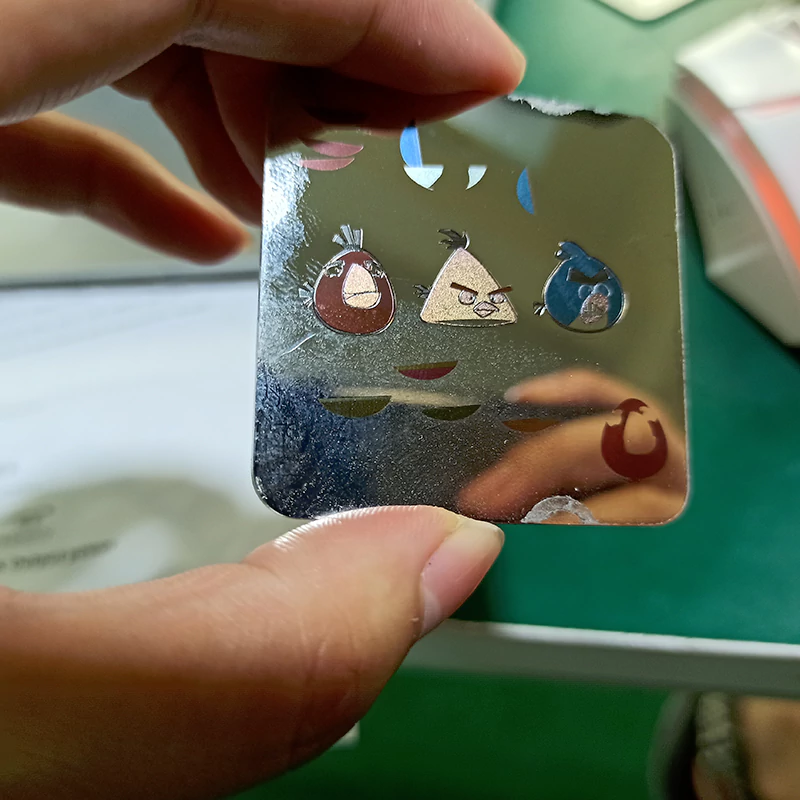

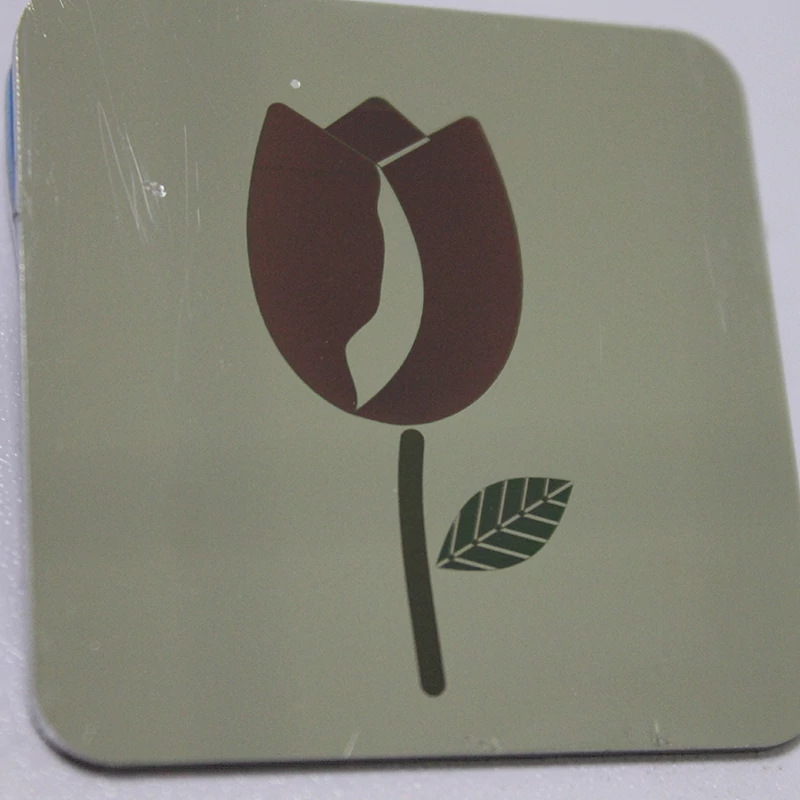

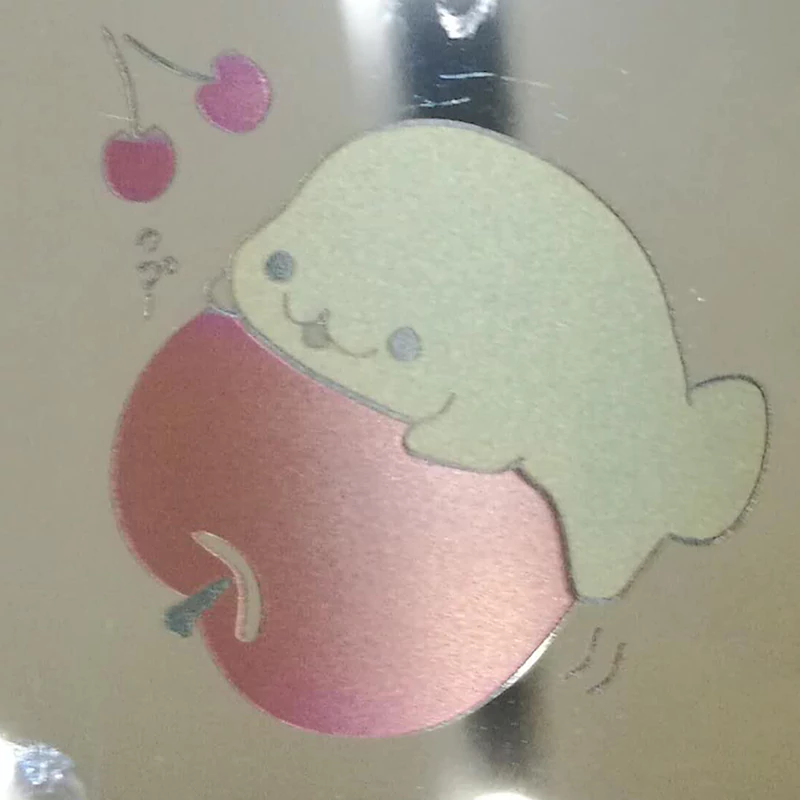

MOPA Color Marking

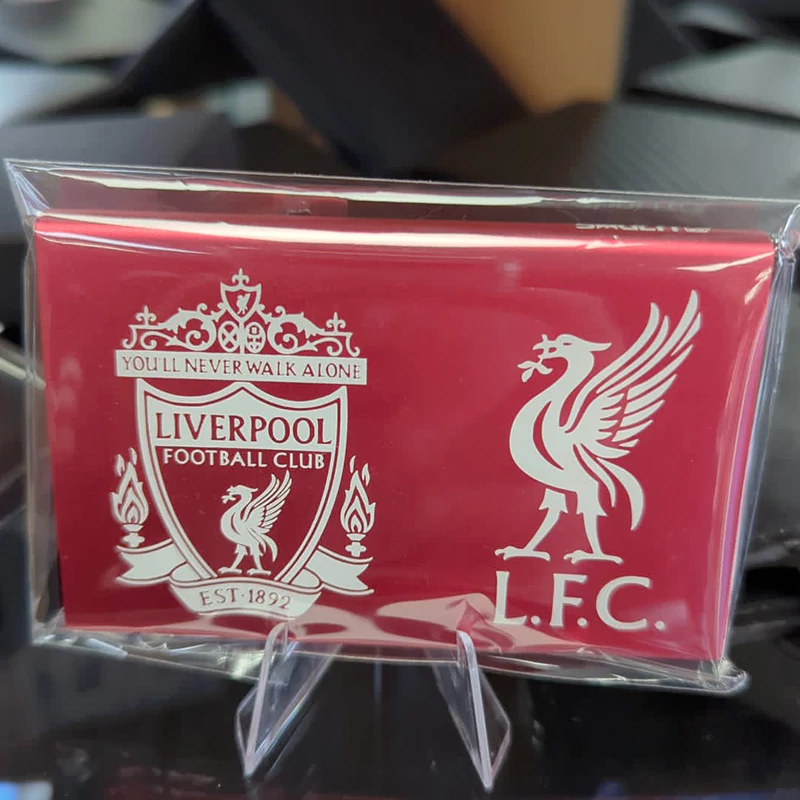

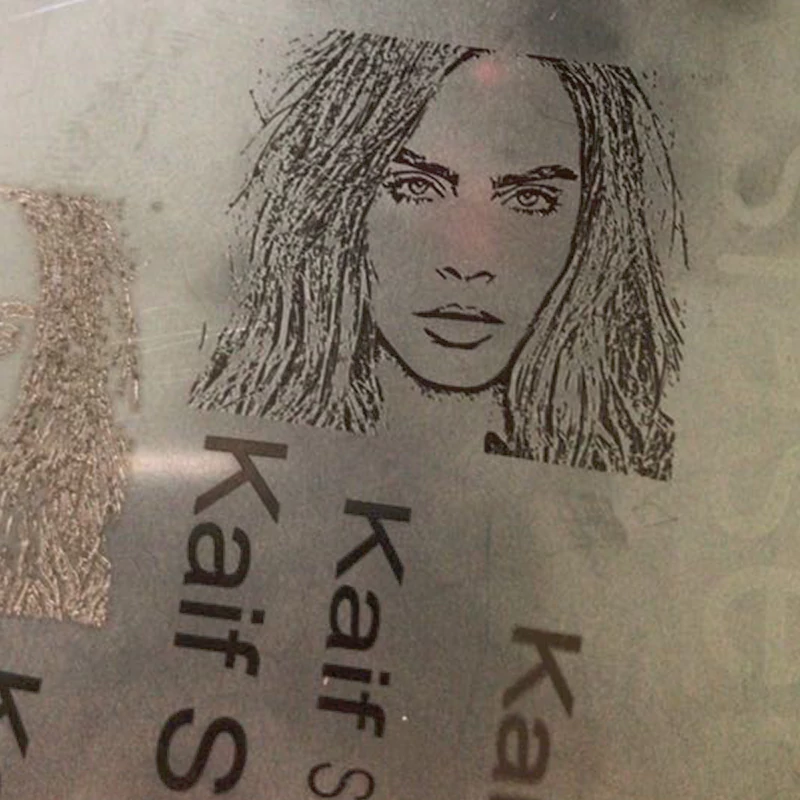

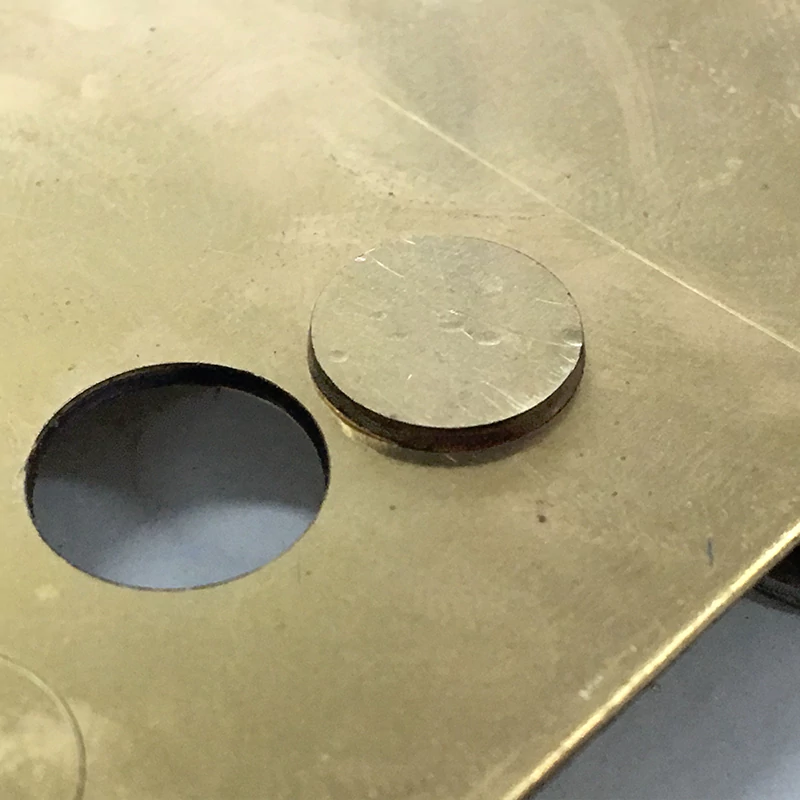

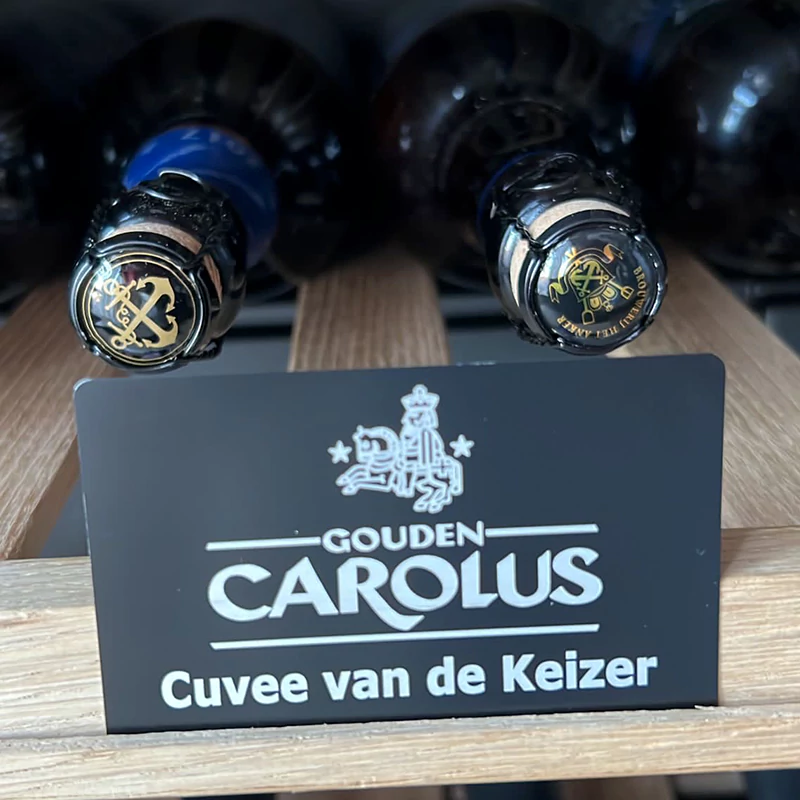

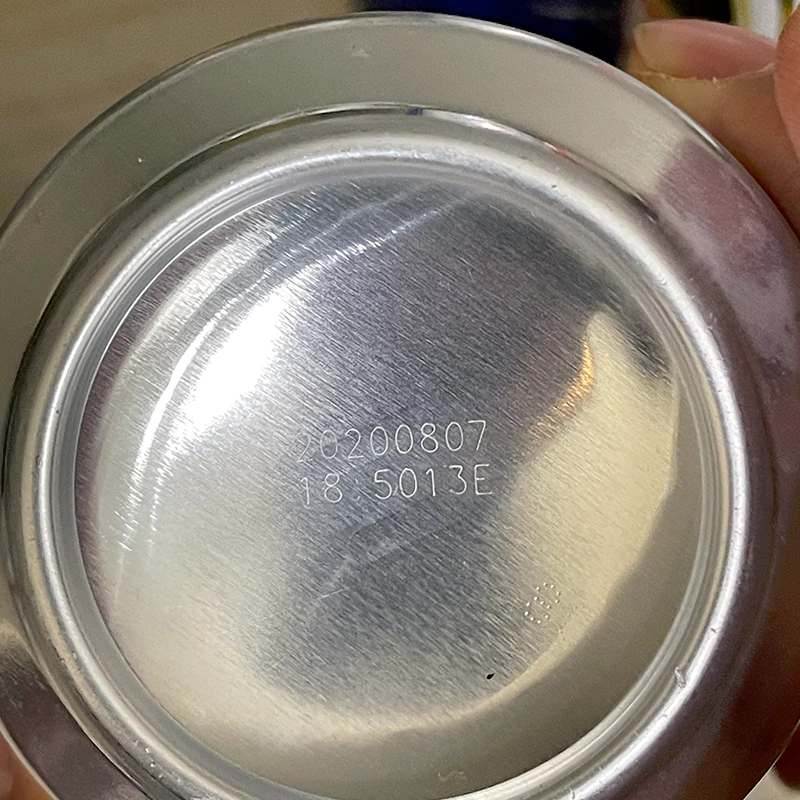

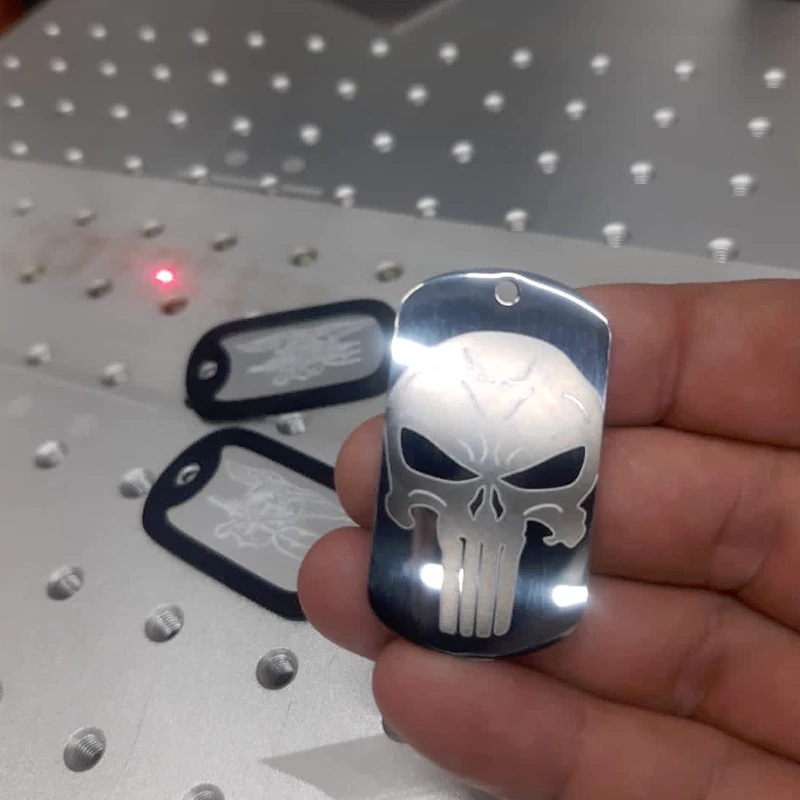

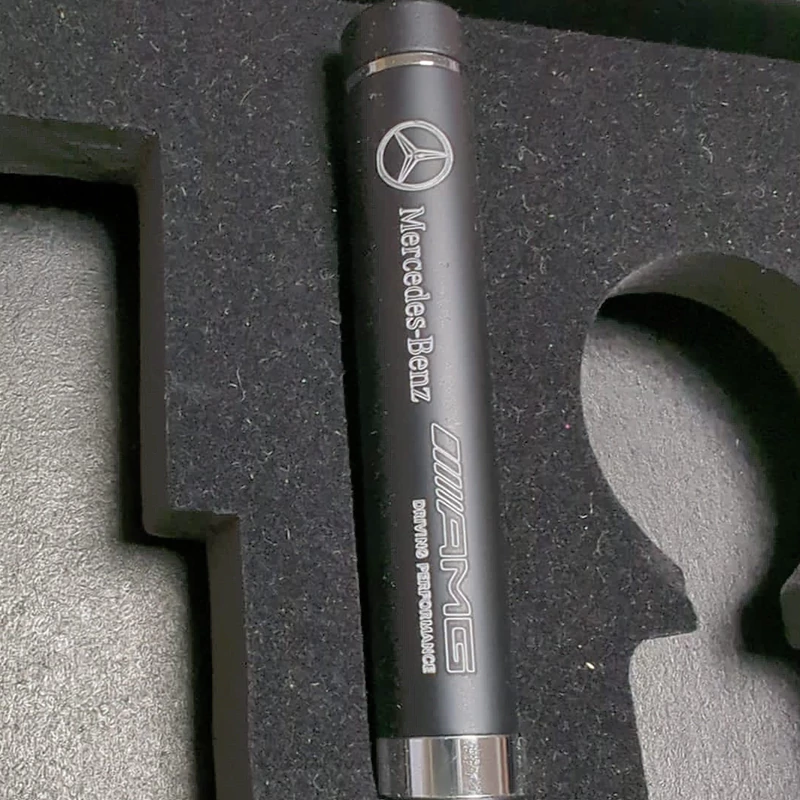

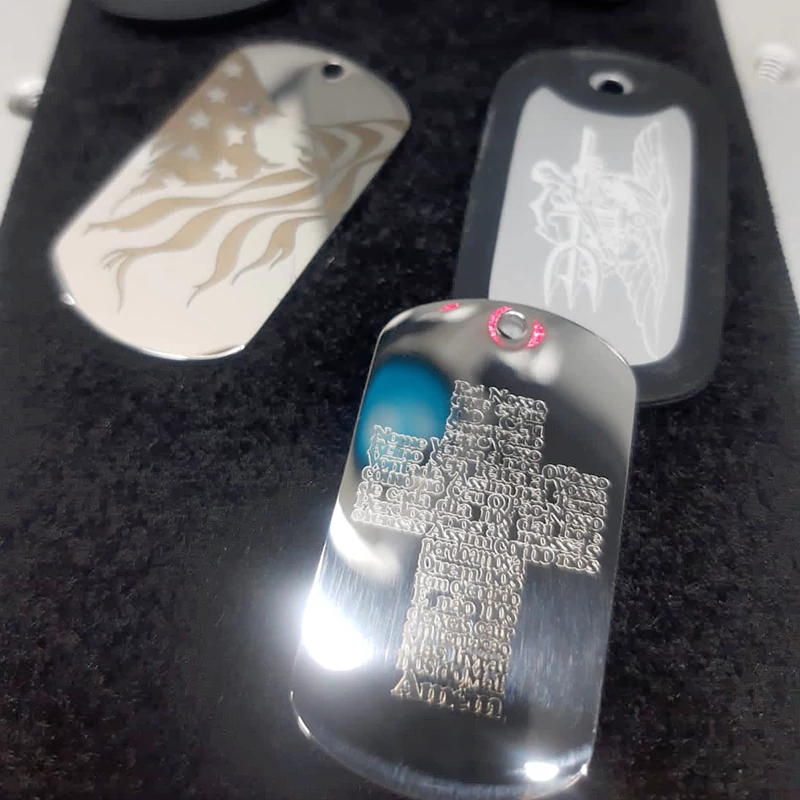

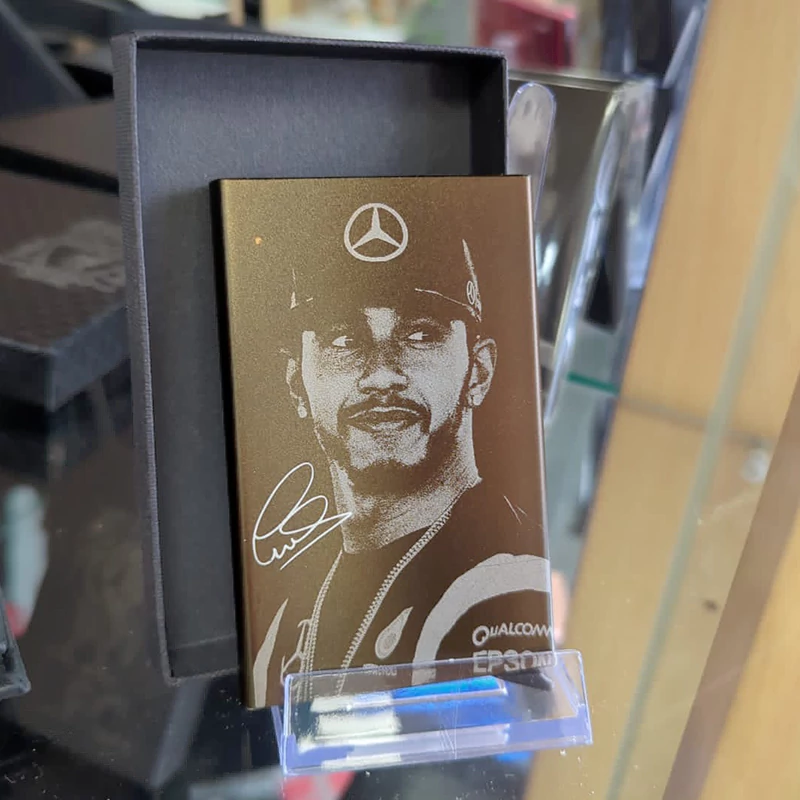

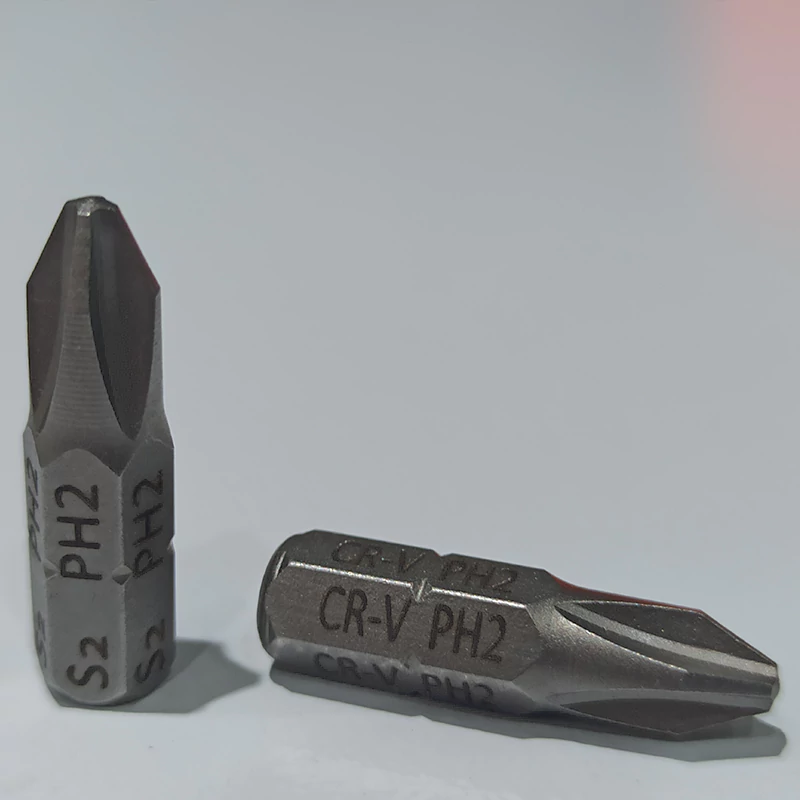

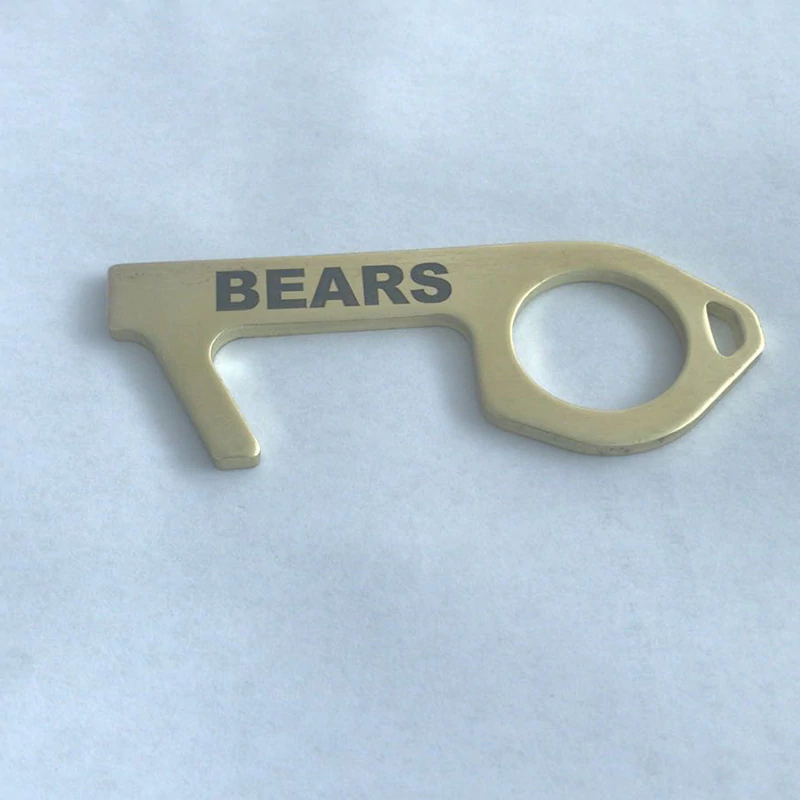

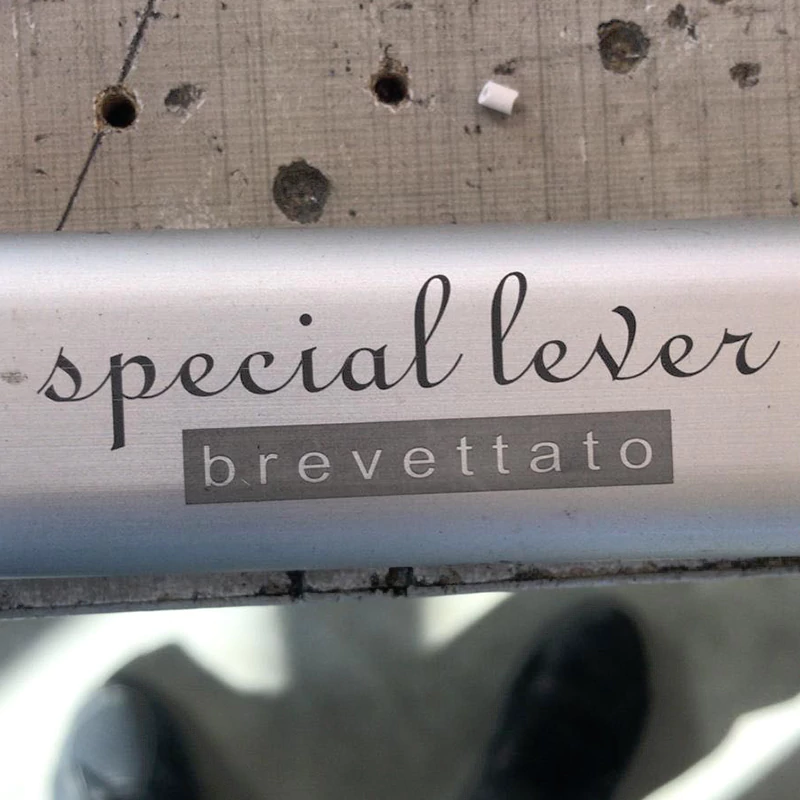

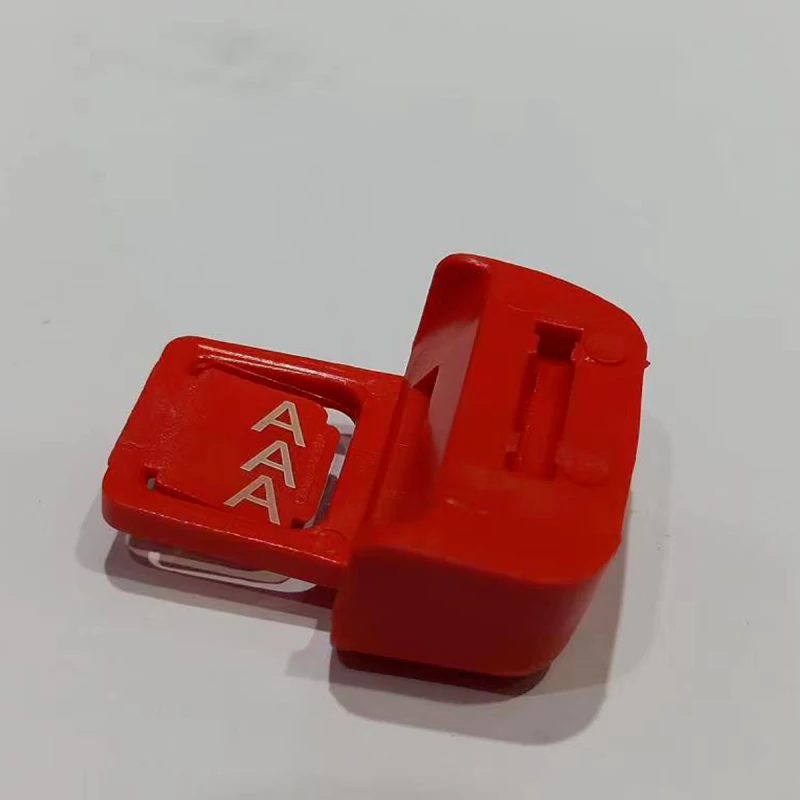

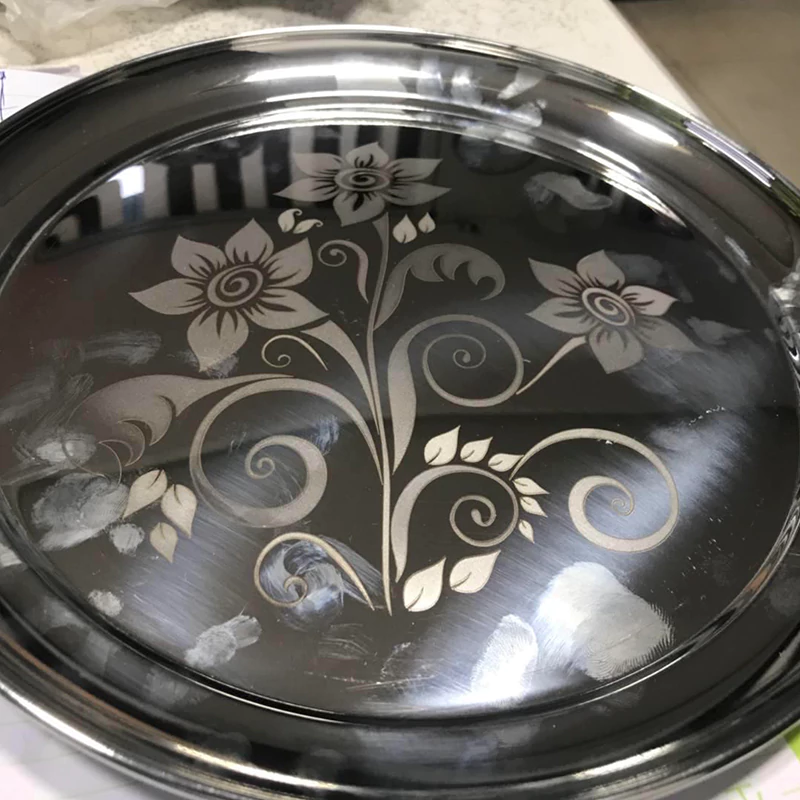

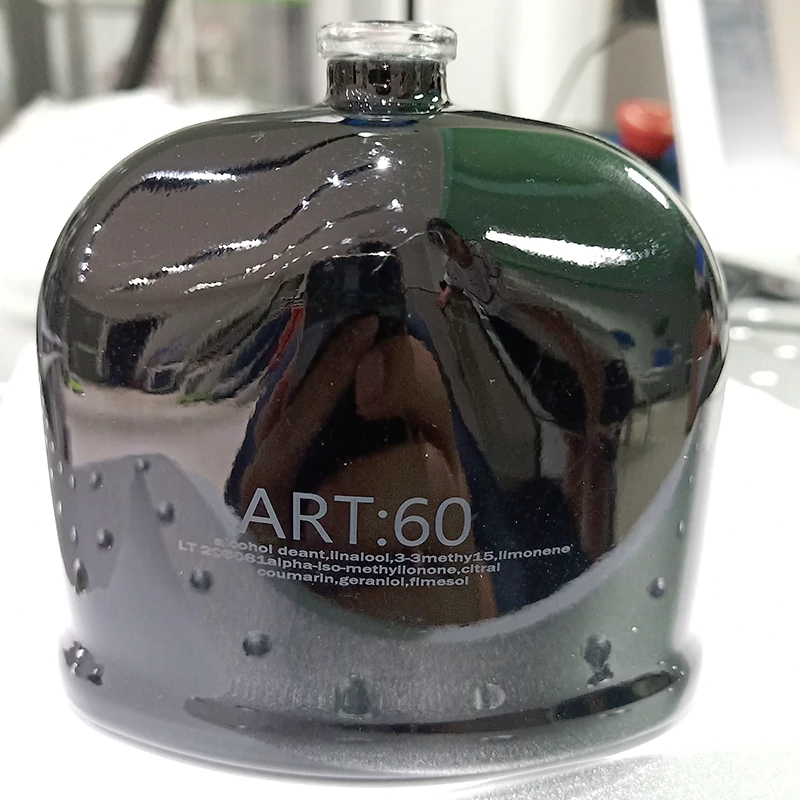

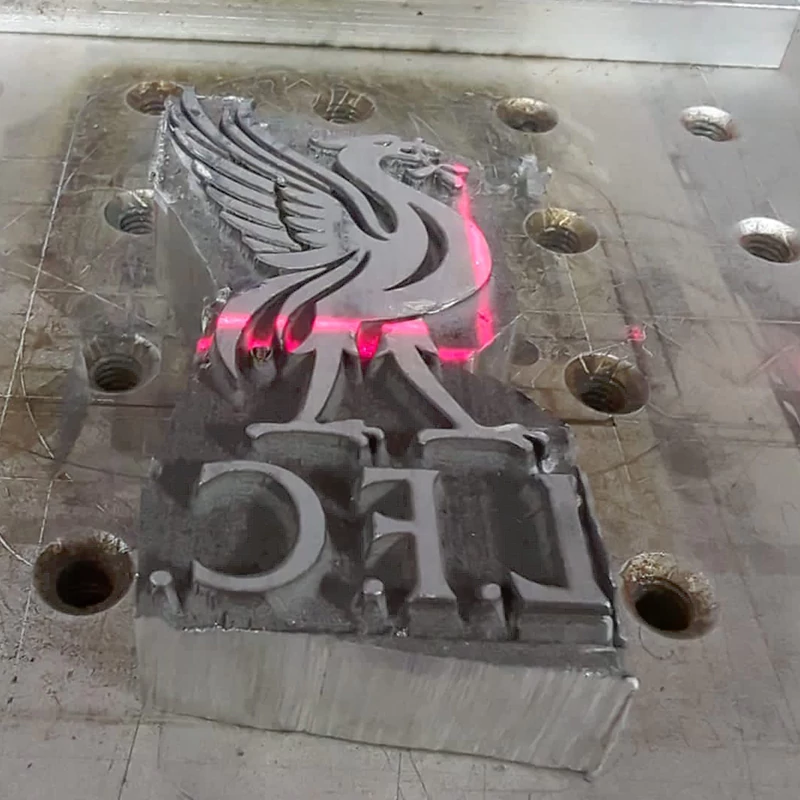

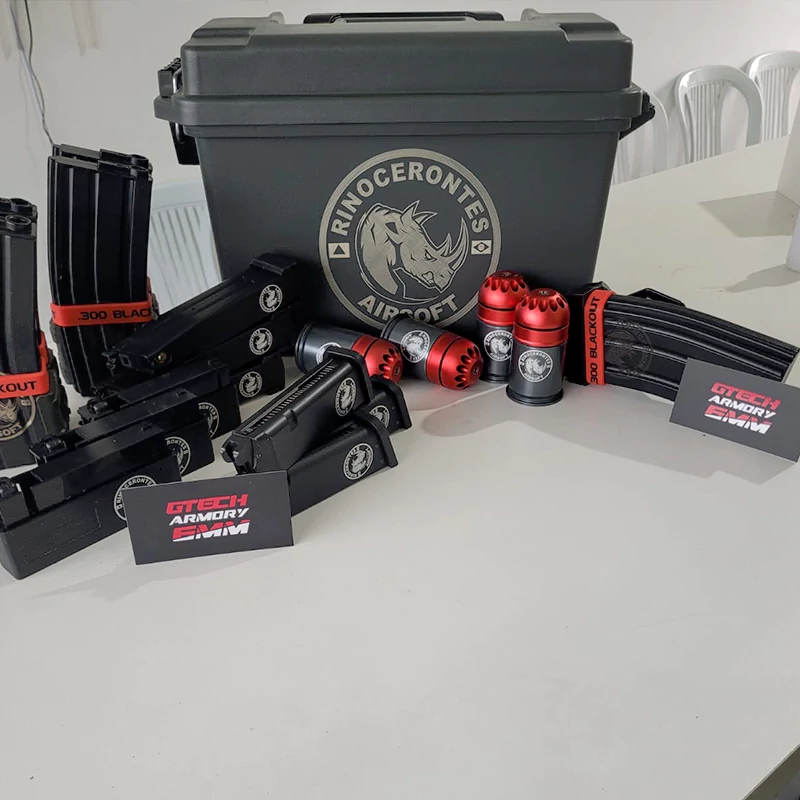

Products made by customers themselves using machines
Hot Product

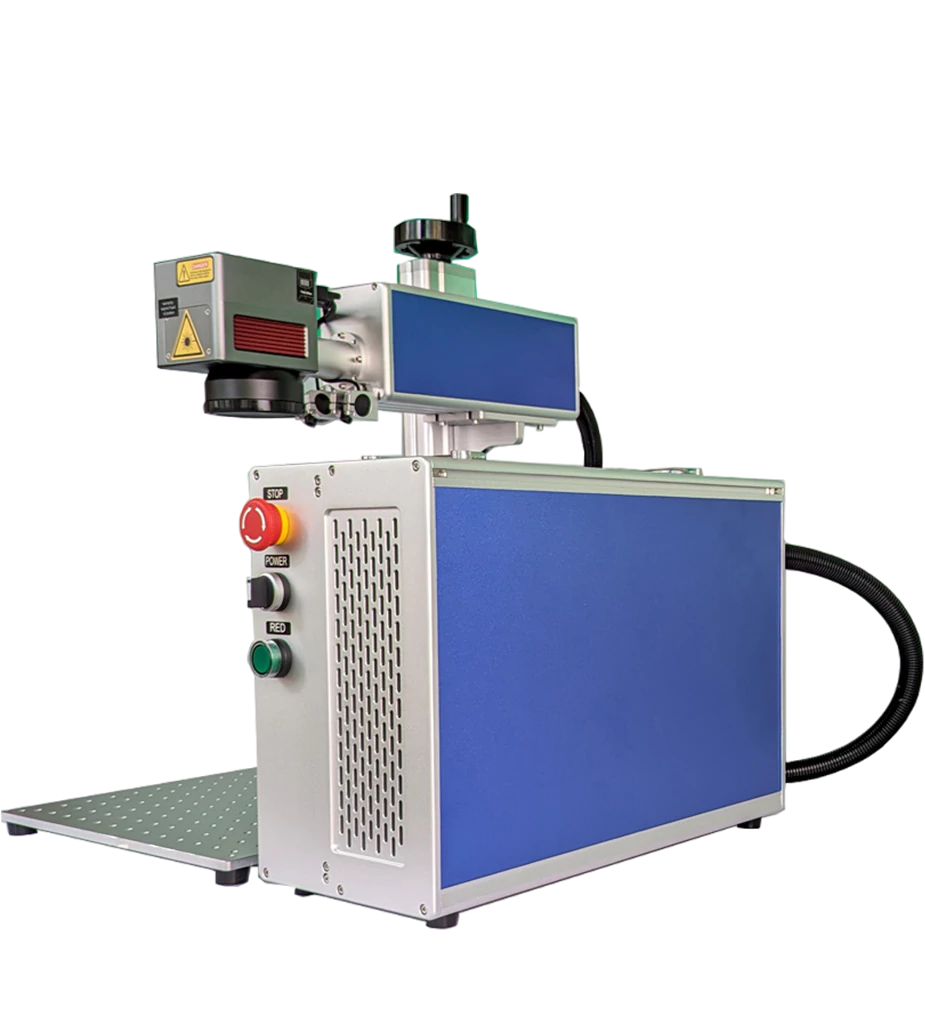

Split type 60W JPT MOPA M7 fiber laser marking Engraving machine
High Precision, Fast Marking Speed, Easily operating.
Free Samples Testing.
Long service life of up to 100, 000 hours.
Ultra-high quality and low operating costs.
Compatible with Windows XP/Vista/7/8/10/11.
Professional engineers 24 hours online service.
Engrave color on stainless steel.
Product Details

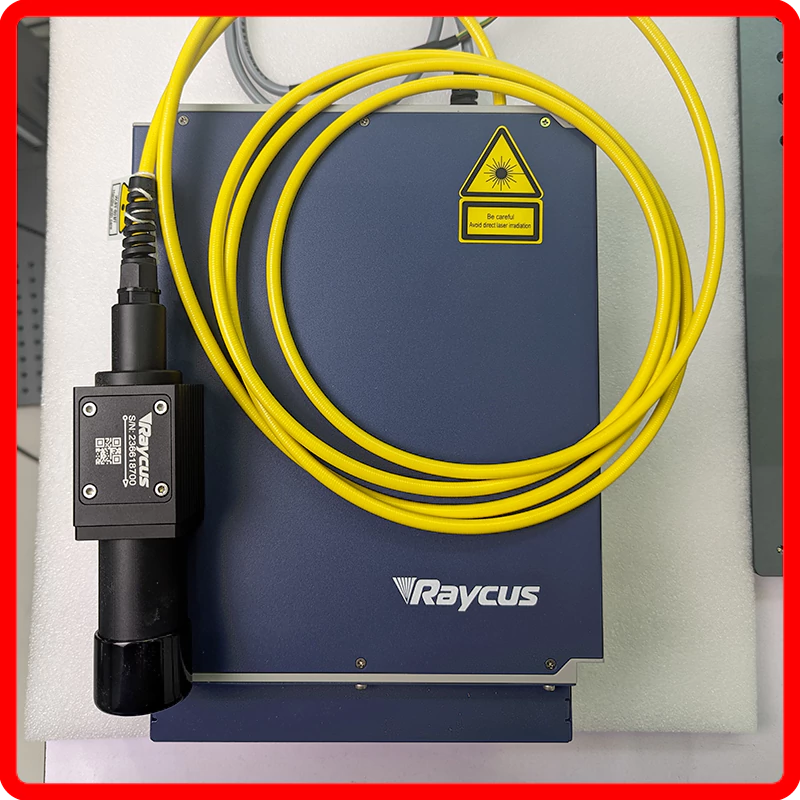

Laser Source
High stability, free maintenance. Jpt/Max/Raycus optional.

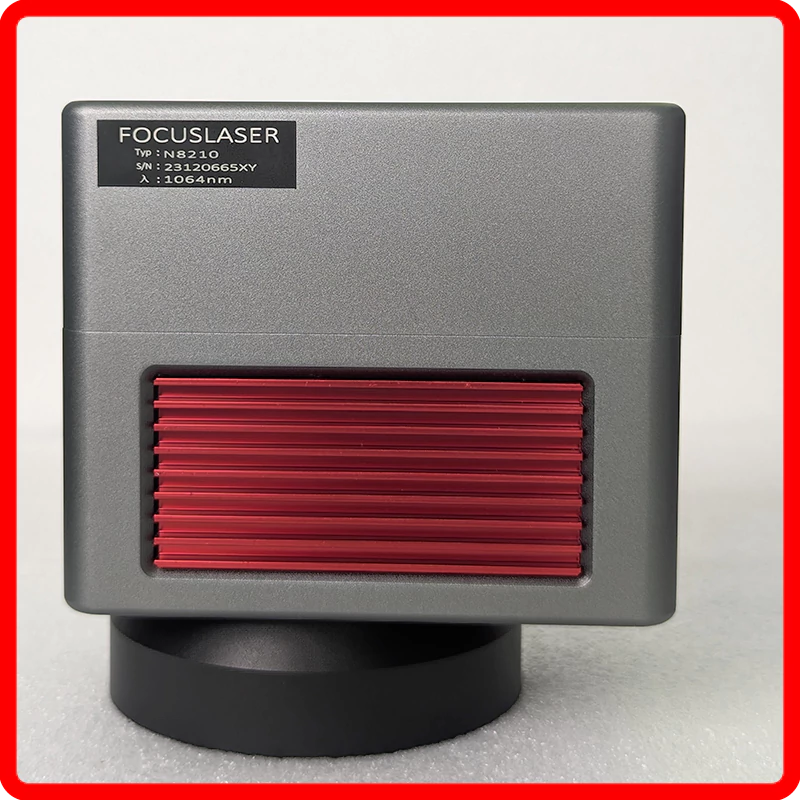

Galvo Scanner
High speed scanning head for precise engraving.

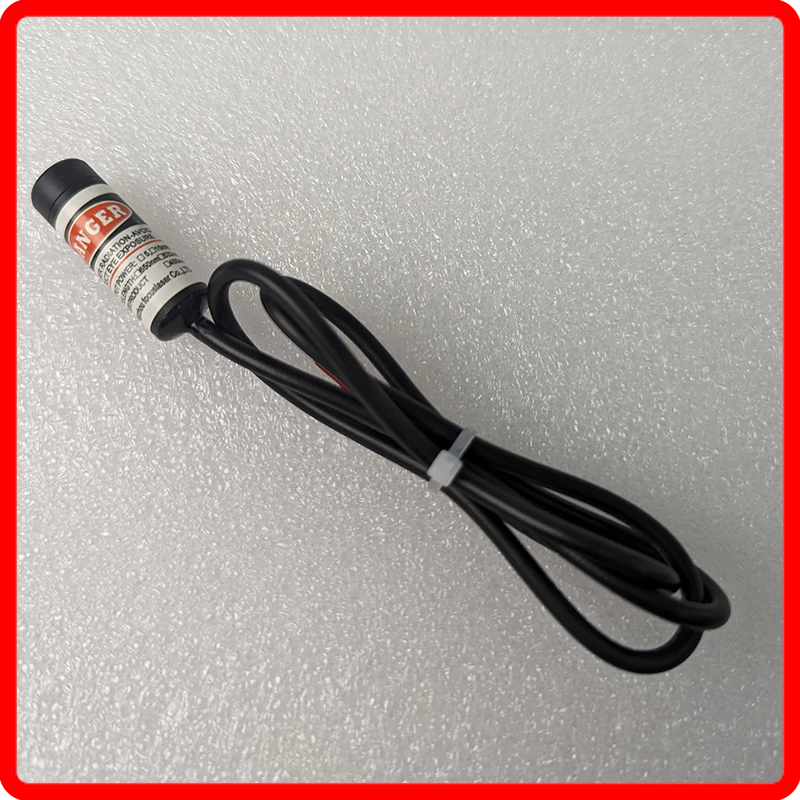

Red Light Pointer
Choose high-quality insulating outer coating material to ensure a long time of use. The professional big red dot pointer is durable and easy to maintain later.

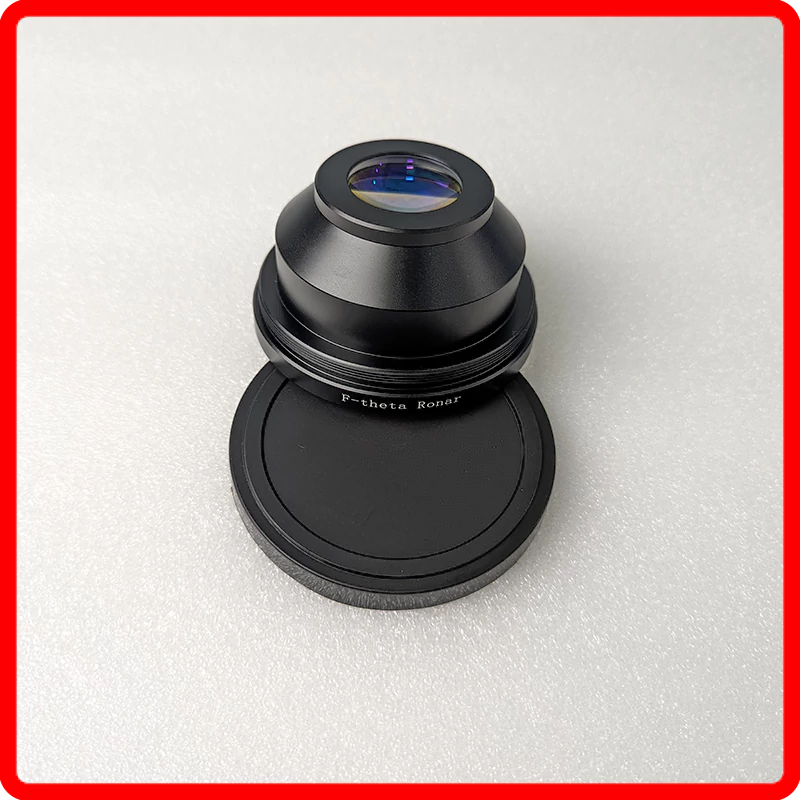

Focus Lens
High transmittance. F-Theta lens, 110*110-300*300mm. Different working sizes available.

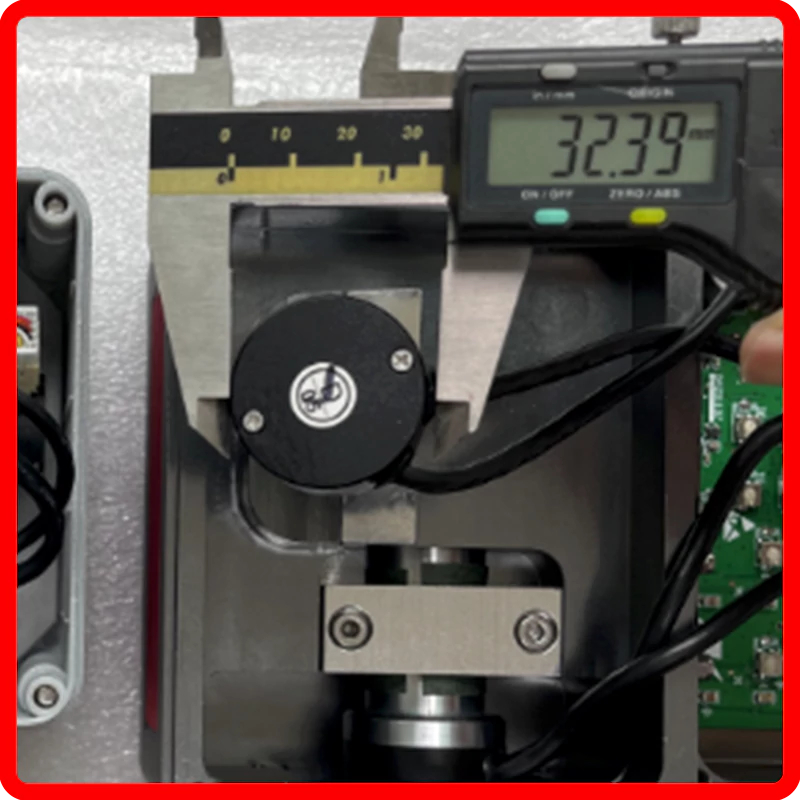

Larger High Quality Motor
Bigger high quality motor to ensure higher performance, make our machine more faster and durable compare with other scanner head.

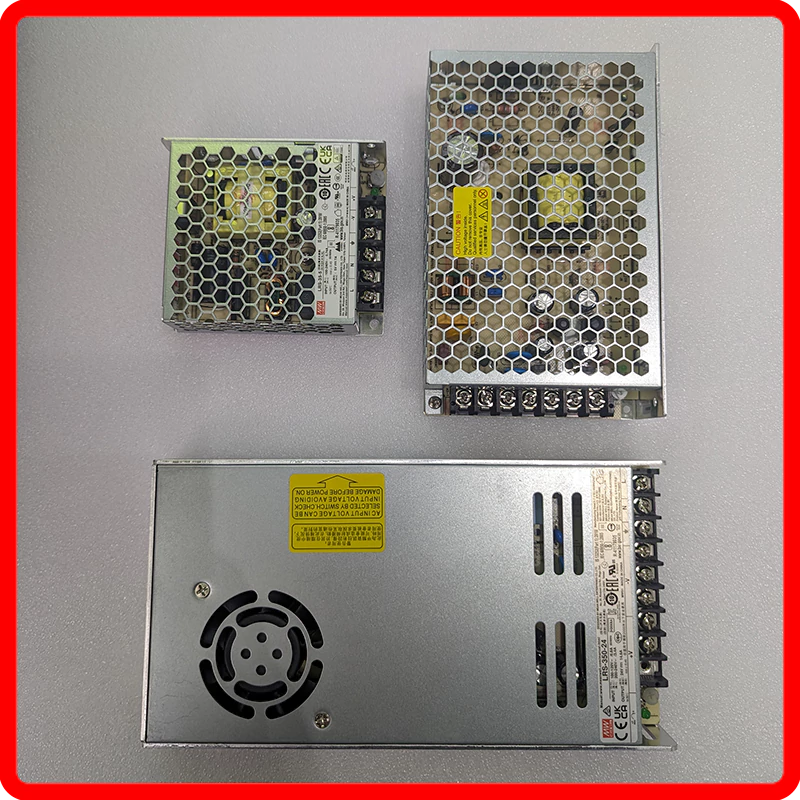

Power Supply
Famous Taiwan “Meanwell”“HF”power supply adopted with most stable continues power supply energy with longest lifespan use.

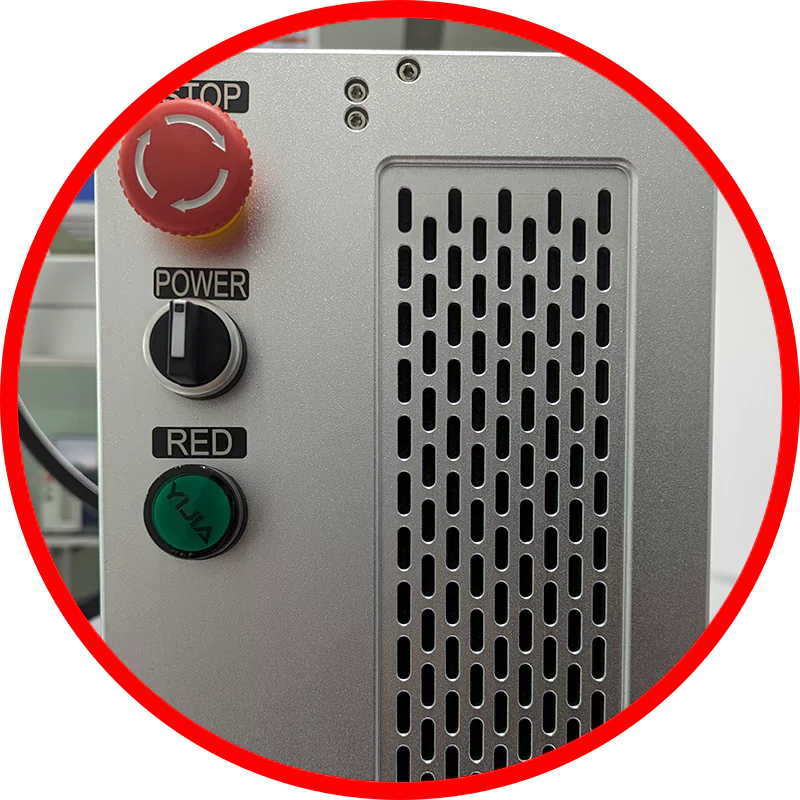

Control Switch
Emergence Stop: For the safety of the operator and the product, press to cut off all power to the machine. Power button: Control the main power of the machine. Red light indicator button: Turn on and off red light when necessary.

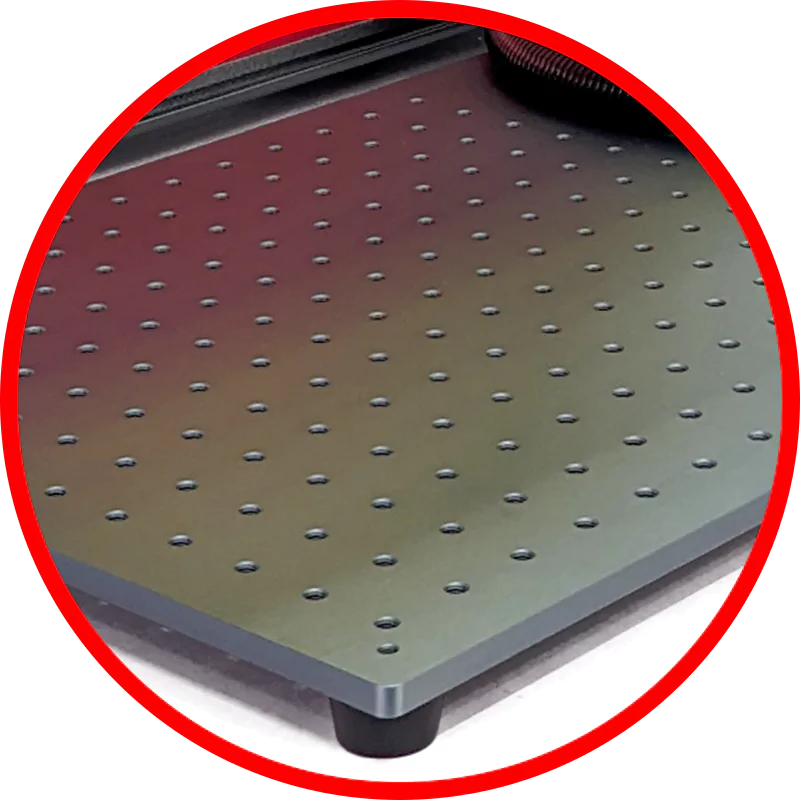

Working Table
High-quality aluminum alloy material, sturdy&durable. Compact structure, more dense holes, can support more accessories installation.

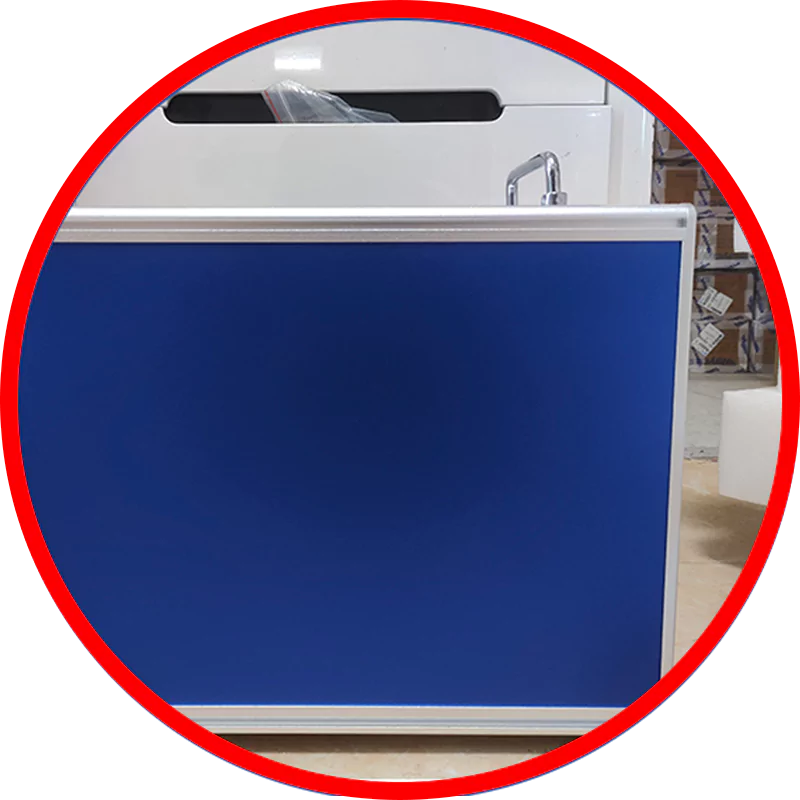

Cabinet
High-quality aluminum alloy material, lighter and stronger than others made of iron material.Made from private molds, support custom cabinet color(blue,red, grey).

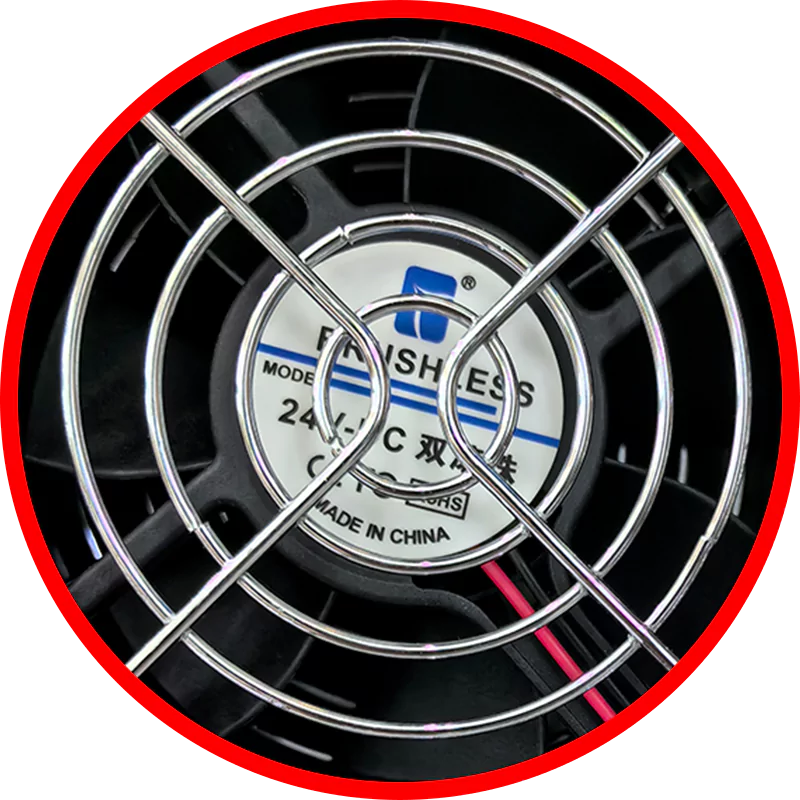

Metal Fan Net Protection
With brush-less durable fans for heat exhausting. More safe and environment friendly.

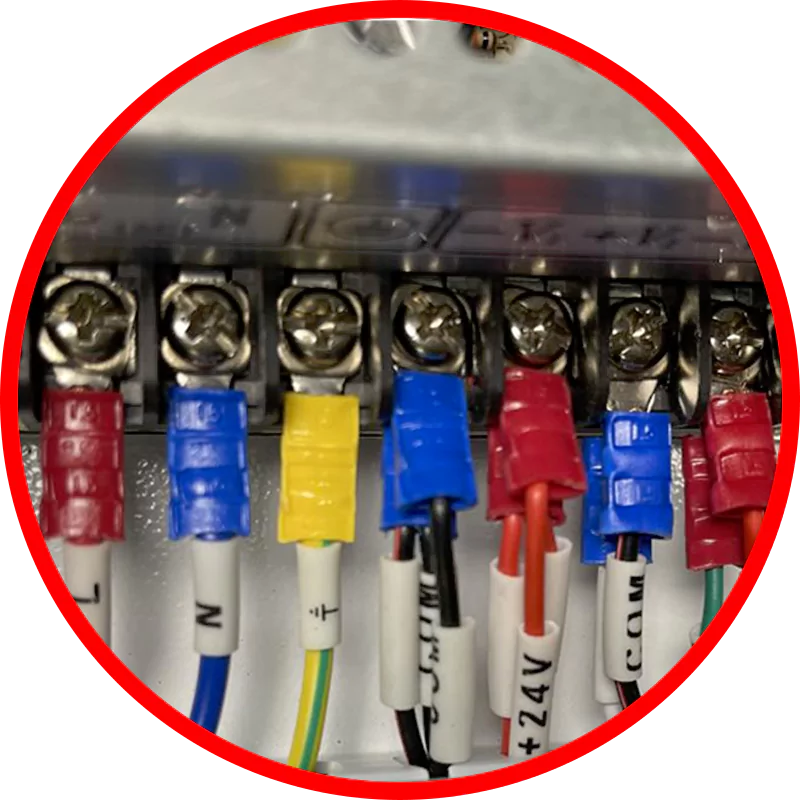

Layout of Wires
High educated engineers pay attention to details of the machines and follow the strict standards.

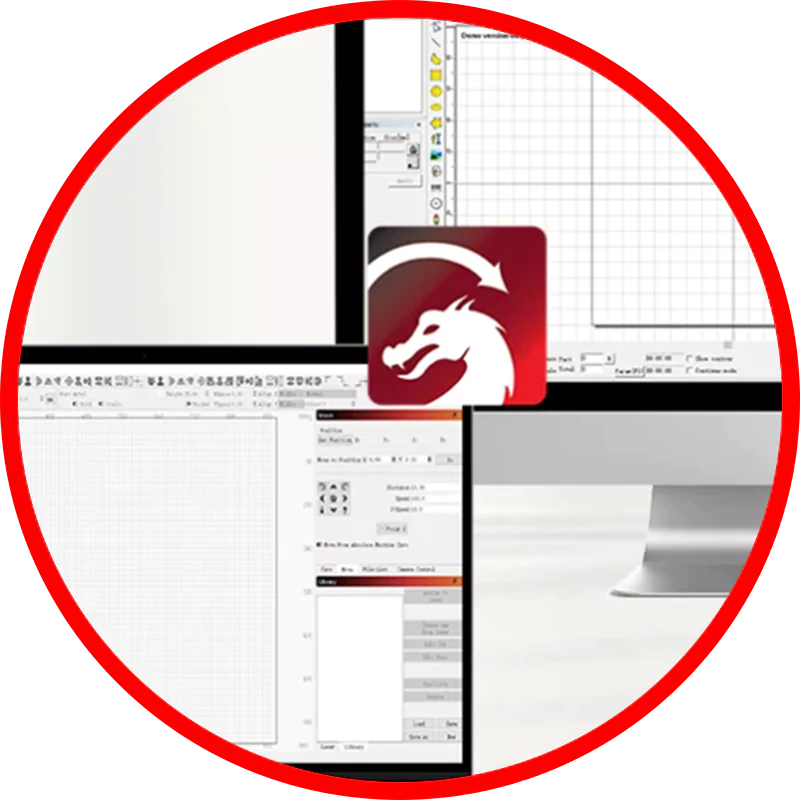

Support Lightburn Software
The machine supports the Lightburn software extension, which is user-friendly for beginners and experienced users, ease in creating complex designs and allowing for precise markings.
Machine Accessories

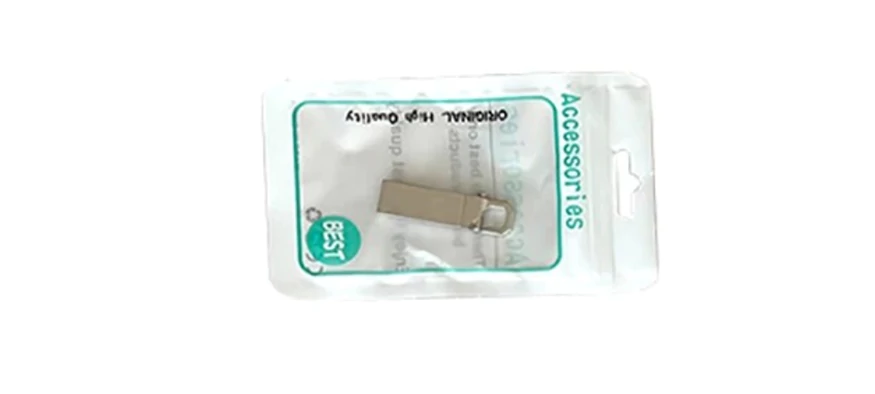

1 Pcs U Disk (USB)
1 Software Ezcad2 （in the U-disk）

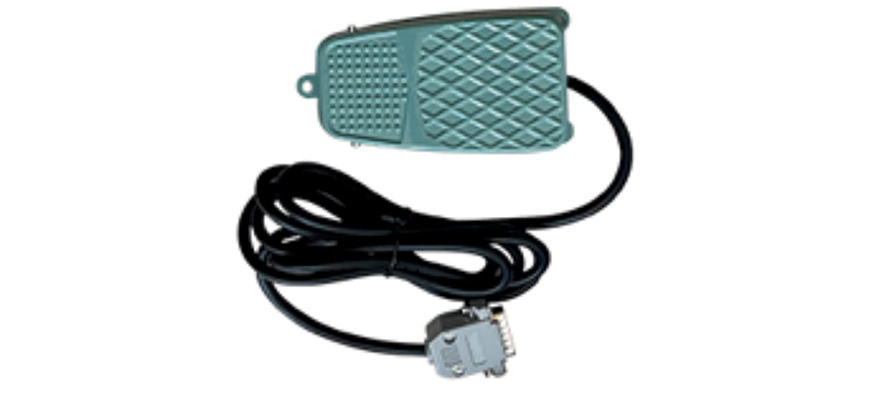

1 Set Foot Switch

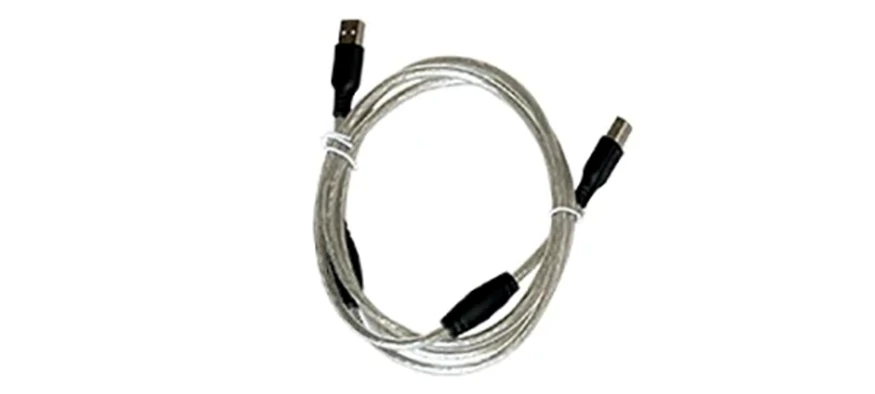

1 Pcs Data Line(USB Line)

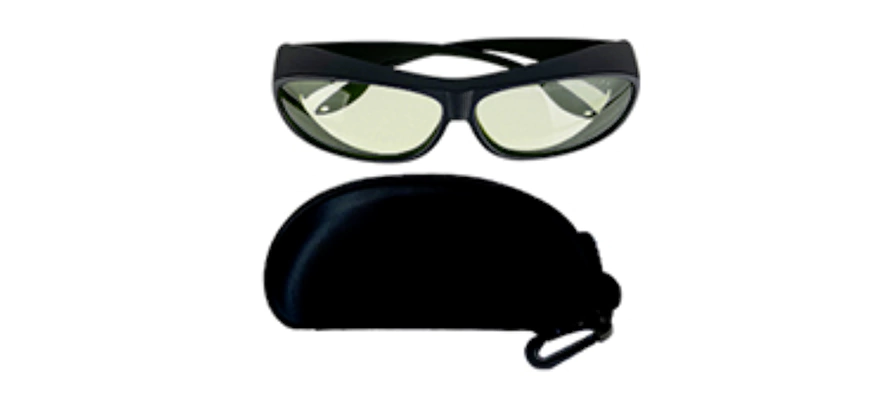

1 Pair Goggles

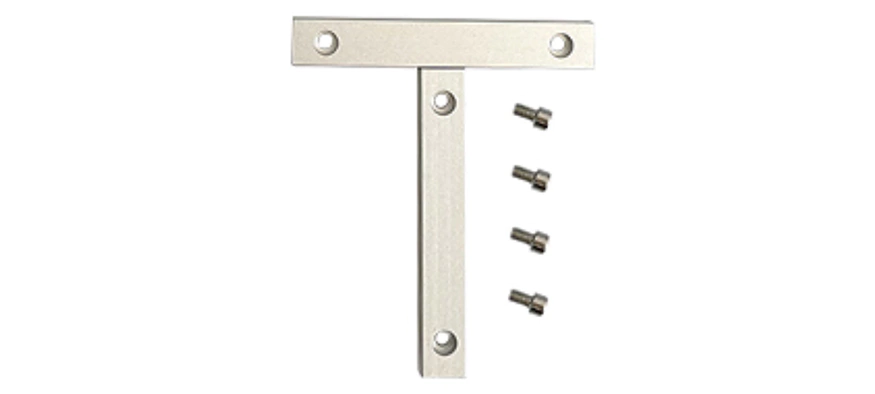

4 Pcs Fixed Sheet Metal

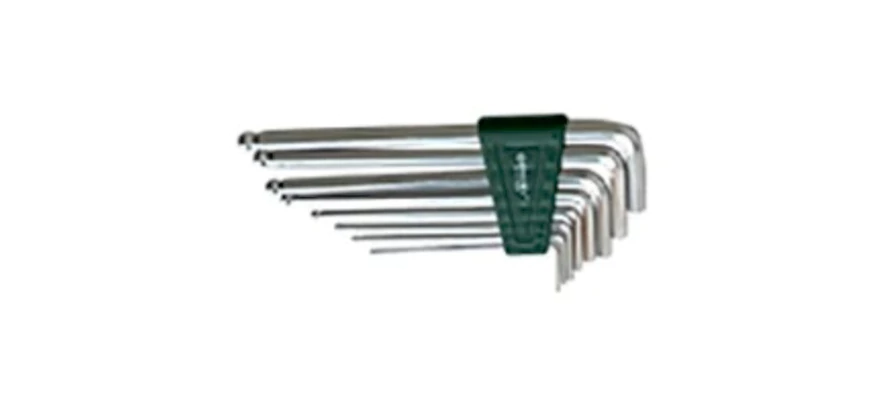

1 Set Assembly Tools

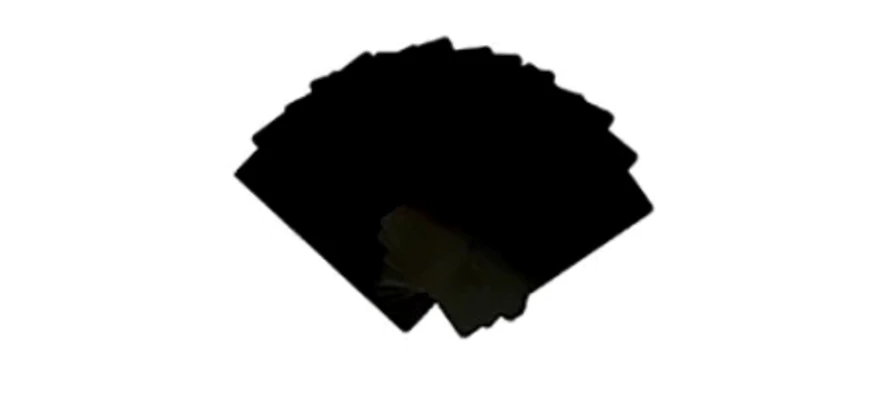

10 Pcs Metal Card

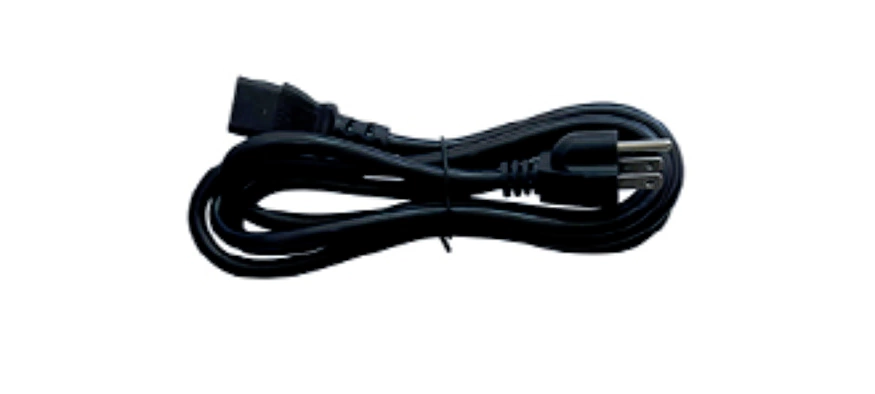

1 Set Power Cable
Compatible Accessories
Some Accessories Need To Be Used When Engraving And Marking Special Products, Such As Engraving Cups Need To Use D80 Rotary, Engraving Rings Need To Use E69 Rotary.

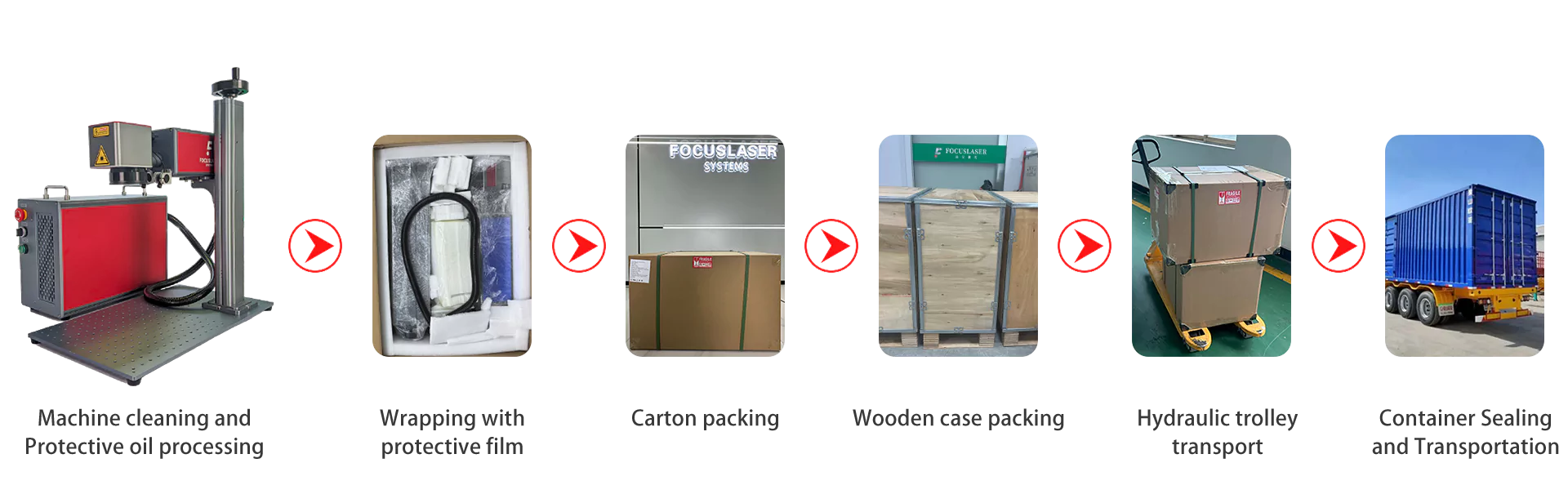

Packing
